Product Details
Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,ISO9001-2001
Model Number: H5077NL
Payment & Shipping Terms
Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Reel/Tray/Bulk
Delivery Time: Stock Or 4 weeks
Payment Terms: TT,Paypal,West Union, L/C
Supply Ability: 300k-pcs/month
Part Number: |
1000Base-T, Single Port Mini-Magnetics Modules Designed To Support 1:1 Turns Ratio H5077NL |
Inductance: |
350uH |
Turns Ratio: |
1CT:1CT |
Feature: |
Open Header |
Pin No.: |
24 Pins |
Type: |
Surface Mount Type |
Part Number: |
1000Base-T, Single Port Mini-Magnetics Modules Designed To Support 1:1 Turns Ratio H5077NL |
Inductance: |
350uH |
Turns Ratio: |
1CT:1CT |
Feature: |
Open Header |
Pin No.: |
24 Pins |
Type: |
Surface Mount Type |
1000Base-T, Single Port Mini-Magnetics Modules Designed to Support 1:1 Turns Ratio H5077NL
Description of the 1000Base-T, Single Port Mini-Magnetics Modules Designed to Support 1:1 Turns Ratio H5077NL:
| Part number | H5077NL |
| Brand | Shareway |
| Place of production | China |
| Size | 13.97x12.57x4.57mm |
| Pin No. | 24 |
| Pitch | 1.00mm |
| Inductance | 350uH |
| Turns Ratio | 1CT:1CT |
| Speed | 1000 Base-T |
| Mount | Surface Mount Type |
| Feature | Open Header |
| Compliant | RoHS Compliant |
| HI-POT | 1500V/ 3000V & 6000V optional |
Application of the H5077NL: The H5077NL is used in a variety of applications, such as Industrial automation, Medical equipment, Mother board, PoE applications.

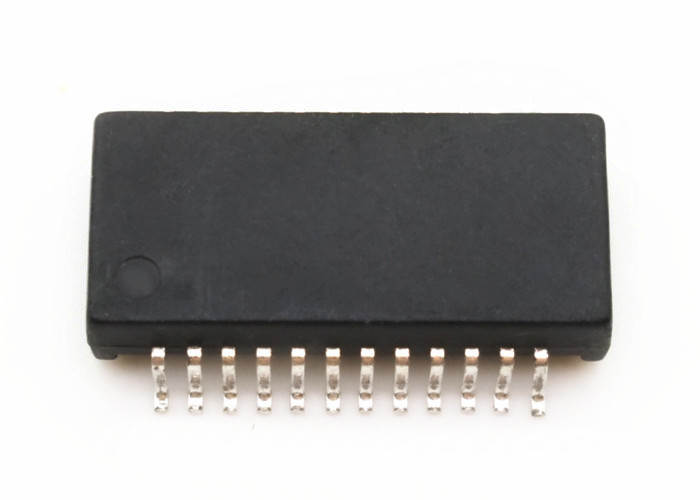

Photo of the 1000Base-T, Single Port Mini-Magnetics Modules Designed to Support 1:1 Turns Ratio H5077NL:
