Soft Saturation Shielded Power Inductors
, Shielded Power Inductors XEL3530
, Shareway XEL3530
Shareway Shielded Power Inductors with Soft Saturation Characteristics XEL3530
Shareway Shielded Power Inductors with Soft Saturation Characteristics XEL3530
Features
-
Superior current handling with soft saturation characteristics.
-
Extremely low DCR and ultra low AC losses for high switching frequencies (2 to 5 MHz).
-
Can withstand high current spike.
-
Magnetically shielded to minimize EMI.
-
Composite construction minimizes audible buzzing.
-
No thermal aging – perfect for high-temperature applications.
-
AEC-Q200 Grade 1 (−40°C to +125°C) with a 165°C max part temperature.
Electrical Specification
|
Inductance
±20% Tolerance
|
DCR
(Typ)
|
DCR
(Max)
|
SRF
(Typ)
|
Isat
(10% drop)
|
Isat
(20% drop)
|
Isat
(30% drop)
|
Irms
(20°C rise)
|
Irms
(40°C rise)
|
| 0.23 μH |
4.2 mΩ |
4.85 mΩ |
211 MHz |
5.2 A |
7.8 A |
10.6 A |
12.6 A |
17.2 A |
| 0.3 μH |
5.2 mΩ
|
6.0 mΩ |
173 MHz |
4.5 A |
7.0 A |
9.2 A |
11.3 A |
15.3 A |
| 0.4 μH |
6.1 mΩ |
7.1 mΩ |
149 MHz |
4.0 A |
6.2 A |
8.3 A |
9.1 A |
12.7 A |
| 0.5 μH |
7.2 mΩ |
8.35 mΩ |
129 MHz |
3.7 A |
5.8 A |
7.9 A |
8.5 A |
11.4 A |
| 0.68 μH |
10.3 mΩ |
11.85 mΩ |
110 MHz |
2.9 A |
4.4 A |
6.2 A |
7.0 A |
9.2 A |
| 0.9 μH |
12.7 mΩ |
14.6 mΩ |
95 MHz |
2.8 A |
4.2 A |
5.9 A |
5.9 A |
8.4 A |
| 1.2 μH |
17.8 mΩ |
20.5 mΩ |
79 MHz |
2.5 A |
3.8 A |
5.2 A |
4.2 A |
6.0 A |
Drawing & Dimension

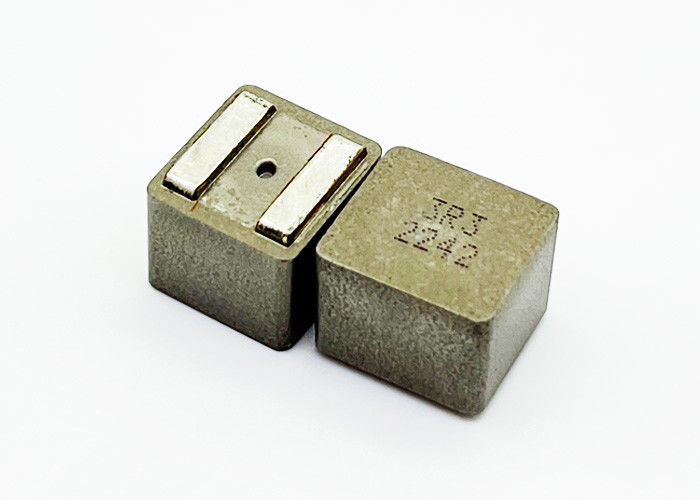

Product Picture
