Flat wire windings Shielded High Current Power Inductors VER2923-332KL VER2923-472KL
Flat wire windings Shielded High Current Power Inductors VER2923-332KL VER2923-472KL
Characteristics
- Flat wire windings provide extremely low DC and AC resistance.
- Low loss ferrite cores provide flat L vs I
- Magnetic shielding to minimize EMI
- Through-hole (TH) mounting for rugged board attachment
Electrical Properties:
| Part number |
Inductance1 ±10% (µH) |
DCR (mOhms)2 nom |
DCR (mOhms)2 max |
SRF typ3 (MHz) |
Isat (A)4 10% drop |
Isat (A)4 20% drop |
Isat (A)4 30% drop |
Irms (A)5 20°C rise |
Irms (A)5 40°C rise |
| VER2923-332KL |
3.3 |
2.3 |
2.6 |
40 |
95.0 |
104 |
108 |
19 |
26 |
| VER2923-472KL |
4.7 |
2.3 |
2.6 |
30 |
63.0 |
69.0 |
72.0 |
19 |
26 |
| VER2923-682KL |
6.8 |
2.3 |
2.6 |
25 |
48.0 |
53.0 |
56.0 |
19 |
26 |
| VER2923-103KL |
10 |
2.3 |
2.6 |
20 |
30.0 |
34.0 |
37.0 |
19 |
26 |
| VER2923-153KL |
15 |
2.3 |
2.6 |
16 |
20.5 |
23.0 |
24.5 |
19 |
26 |
| VER2923-223KL |
22 |
2.3 |
2.6 |
13 |
12.2 |
14.7 |
16.4 |
19 |
26 |
| VER2923-333KL |
33 |
2.3 |
2.6 |
10 |
7.5 |
9.2 |
10.3 |
19 |
26 |
Shape and Dimensions:

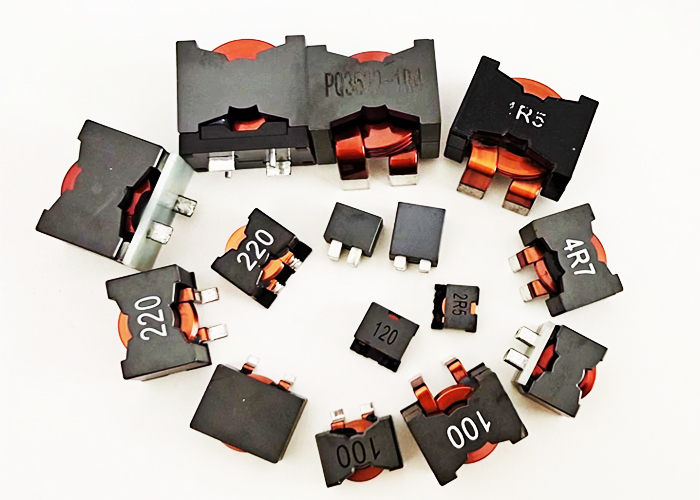

Product picture:
HCM SMT High Current Flat Wire Inductor for Power PC 744308015
