2.6 µH to 900 µH high-temperature common mode chokes MSD1260T-332ML
2.6 µH to 900 µH high-temperature common mode chokes MSD1260T-332ML
Characteristics:
-
- Common mode and differential mode filtering in a single device
- Ideal for use in both power line and signal line applications
- Up to 170 MHz differential mode cutoff frequency
Electrical Properties:
| Partnumber |
Common mode impedance max (kOhms) |
Cutoff frequency (MHz) |
Inductance (µH) min |
Inductance (µH) nom |
DCR max (Ohms) |
Isolation (Vrms) |
Irms (A) |
| MSD1260T-332ML_ |
5.29 @ 53 MHz |
170 |
2.64 |
3.3 |
0.020 |
500 |
3.60 |
| MSD1260T-472ML_ |
6.27 @ 43 MHz |
140 |
3.76 |
4.7 |
0.036 |
500 |
3.16 |
| MSD1260T-562ML_ |
8.38 @ 36 MHz |
91 |
4.48 |
5.6 |
0.040 |
500 |
3.00 |
| MSD1260T-682ML_ |
9.78 @ 33 MHz |
120 |
5.44 |
6.8 |
0.048 |
500 |
2.75 |
| MSD1260T-822ML_ |
9.72 @ 30 MHz |
110 |
6.56 |
8.2 |
0.052 |
500 |
2.63 |
| MSD1260T-103ML_ |
12.31 @ 26 MHz |
110 |
8.00 |
10 |
0.060 |
500 |
2.45 |
| MSD1260T-123ML_ |
14.67 @ 23 MHz |
81 |
9.60 |
12 |
0.074 |
500 |
2.21 |
| MSD1260T-153ML_ |
16.17 @ 21 MHz |
77 |
12.0 |
15 |
0.085 |
500 |
2.06 |
| MSD1260T-183ML_ |
16.96 @ 18 MHz |
64 |
14.4 |
18 |
0.097 |
500 |
1.93 |
| MSD1260T-223ML_ |
20.73 @ 17 MHz |
79 |
17.6 |
22 |
0.116 |
500 |
1.76 |
| MSD1260T-273ML_ |
26.07 @ 15 MHz |
58 |
21.6 |
27 |
0.124 |
500 |
1.70 |
| MSD1260T-333ML_ |
26.15 @ 12 MHz |
58 |
26.4 |
33 |
0.134 |
500 |
1.64 |
| MSD1260T-393ML_ |
30.30 @ 12 MHz |
36 |
31.2 |
39 |
0.142 |
500 |
1.59 |
| MSD1260T-473ML_ |
29.81 @ 11 MHz |
53 |
37.6 |
47 |
0.174 |
500 |
1.44 |
| MSD1260T-563ML_ |
51.88 @ 9.6 MHz |
33 |
44.8 |
56 |
0.198 |
500 |
1.35 |
| MSD1260T-683ML_ |
55.74 @ 8.6 MHz |
25 |
54.4 |
68 |
0.216 |
500 |
1.29 |
| MSD1260T-823ML_ |
70.75 @ 8.2 MHz |
26 |
65.6 |
82 |
0.274 |
500 |
1.15 |
| MSD1260T-104ML_ |
80.40 @ 7.3 MHz |
17 |
80.0 |
100 |
0.322 |
500 |
1.06 |
| MSD1260T-124KL_ |
87.96 @ 6.2 MHz |
27 |
108 |
120 |
0.418 |
500 |
0.93 |
| MSD1260T-154KL_ |
97.64 @ 5.4 MHz |
45 |
135 |
150 |
0.476 |
500 |
0.87 |
| MSD1260T-184KL_ |
124.3 @ 5.2 MHz |
23 |
162 |
180 |
0.536 |
500 |
0.82 |
| MSD1260T-224KL_ |
143.4 @ 4.3 MHz |
25 |
198 |
220 |
0.691 |
500 |
0.72 |
| MSD1260T-274KL_ |
134.8 @ 4.3 MHz |
11 |
243 |
270 |
0.806 |
500 |
0.67 |
| MSD1260T-334KL_ |
132.1 @ 3.6 MHz |
35 |
297 |
330 |
1.09 |
500 |
0.57 |
| MSD1260T-394KL_ |
131.0 @ 3.4 MHz |
14 |
351 |
390 |
1.20 |
500 |
0.55 |
| MSD1260T-474KL_ |
193.5 @ 3.3 MHz |
21 |
423 |
470 |
1.59 |
500 |
0.48 |
| MSD1260T-564KL_ |
175.2 @ 2.7 MHz |
15 |
504 |
560 |
1.81 |
500 |
0.45 |
| MSD1260T-684KL_ |
158.6 @ 2.7 MHz |
11 |
612 |
680 |
2.06 |
500 |
0.42 |
| MSD1260T-824KL_ |
225.9 @ 2.2 MHz |
9.2 |
738 |
820 |
2.65 |
500 |
0.37 |
| MSD1260T-105KL_ |
197.0 @ 2.3 MHz |
15 |
900 |
1000 |
3.06 |
500 |
0.34 |

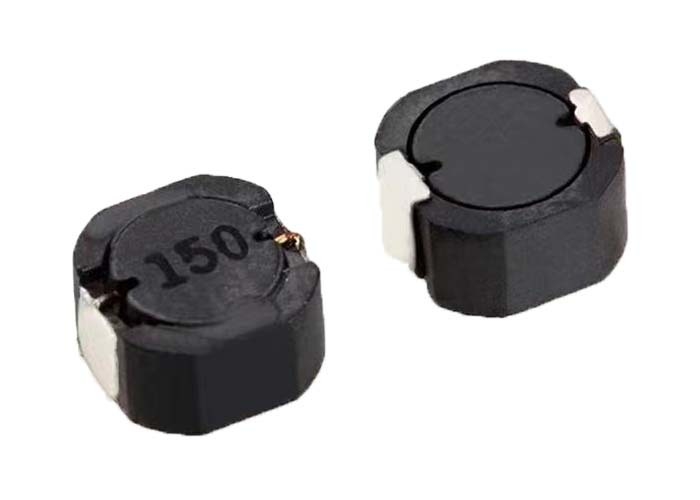

Product picture:
