T1218 Ethernet Transformer Enhanced EMC Performance

Ethernet Lan Transformer
December 26, 2025
Category Connection: Ethernet Lan Transformer
Chat Now Contact Us
Tags:
#smd power transformer #small electric transformer #surface mount transformer
Brief: Watch the demo to catch practical tips and quick performance insights into the T1218 Ethernet Transformer. This video showcases how its dual surface mount design with integrated common mode chokes enhances EMC performance for robust network interfaces. See the construction and learn how it operates reliably across an extended temperature range from -40°C to +85°C.
Related Product Features:
  • Optimized for enhanced EMC performance in Ethernet LAN applications.
  • Features an extended operating temperature range from -40°C to +85°C.
  • Dual SMT package includes transformers with common mode chokes on both transmit and receive channels.
  • Models are pre-matched to leading transceiver ICs for seamless integration.
  • Patented Interlock Base construction ensures high reliability and durability.
  • UL1950 approved, meeting international safety standards.
  • Surface mount design facilitates efficient PCB assembly and space savings.
  • Available for sample testing and customized OEM/ODM orders.
FAQs:
  • What is the operating temperature range for the T1218 Ethernet Transformer?
    The T1218 is designed for an extended temperature range, operating reliably from -40°C to +85°C.
  • How does the T1218 enhance EMC performance?
    It incorporates common mode chokes on both the transmit and receive channels within its dual SMT package, which effectively suppresses electromagnetic interference for improved signal integrity.
  • Is the T1218 compatible with standard transceiver ICs?
    Yes, the T1218 models are matched to leading transceiver ICs, ensuring easy integration and optimal performance in your network interface designs.
  • Are samples available for testing the T1218 transformer?
    Yes, free samples are available for approval, allowing you to verify performance and compatibility before placing a mass order.
Related Videos
T1065NL Dual Port Ethernet Lan Transformer 1000BASE T 00:06

T1065NL Dual Port Ethernet Lan Transformer 1000BASE T
Ethernet Lan Transformer
December 26, 2025
T3011NLT Ethernet Transformer Extended Temp 00:06

T3011NLT Ethernet Transformer Extended Temp
Ethernet Lan Transformer
December 26, 2025
T1212 Transformer Modules Ethernet 100Base T 00:06

T1212 Transformer Modules Ethernet 100Base T
Ethernet Magnetic Transformers
December 26, 2025

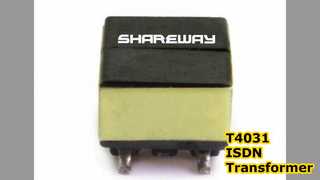

T4031 Signal Transformer ISDN 2B1Q 4B3T 00:06
