DC / DC Converter Surface Mount Transformer Temperature Rise Less Than 20℃

large.img.alt
small.img.alt

Large Image :  DC / DC Converter Surface Mount Transformer Temperature Rise Less Than 20℃

Product Details:

Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008

Payment & Shipping Terms:

Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: Tray, Tape or Reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 3000K.PCS/Month
Detailed Product Description
Product Name: EI /EE/ EF/EER/EFD/ER/EPC/UI/CI/EP/RM Small Signal Transformer Transformer Type: EI /EE/ EF/EER/EFD/ER/EPC/UI/CI/EP/RM
Application: DC/DC Converter Type: Powr Transformer
Mount: Surface Mount Temperature Rise: Temperature Rise
High Light:

small signal isolation transformer

,

10 pin transformer

EI /EE/ EF/EER/EFD/ER/EPC/UI/CI/EP/RM Small Signal Transformer


ELECTRICAL SPECIFICATIONS @25°C unless otherwise noted:

PARAMETER TEST CONDITIONS VALUE
D.C. RESISTANCE     3-5 @20°C 0.034 ohms max
D.C. RESISTANCE     2-1 @20°C 0.077ohms max
D.C. RESISTANCE     6-9 tie(6+7,9+10),@20°C 0.021 ohms max
INDUCTANCE          3-5 10KHz,100mVAC,Ls 9.0uH min.
SATURATION CURRENT 20% rolloff from initial >8A
LEAKAGE INDUCTANCE    3-5 tie(1+2,6+7+9+10),100KHz,50mVAC,Ls 180nH typ.250nH max
DIELECTRIC     3-6 tie(2+5,6+7),1875VAC,1 second 1500VAC,1minute
DIELECTRIC       1-5 625VAC,1 second 500VAC,1minute
TURNS RATIO (3-5):(2-1) 3:1±2%
TURNS RATIO (3-5):(6-9),tie(6+7,9+10) 1.5:1±2%



GENERAL SPECIFICATIONS:

  • OPERATING TEMPERATURE RANGE: -40°C TO +125°C , including temp rise.



Product Picture:

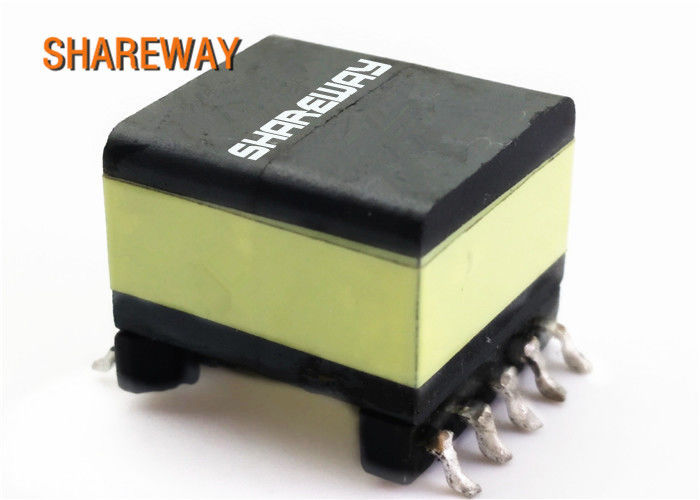

DC / DC Converter Surface Mount Transformer Temperature Rise Less Than 20℃ 0





EI /EE/ EF/EER/EFD/ER/EPC/UI/CI/EP/RM Small Signal Transformer


HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.

Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs
