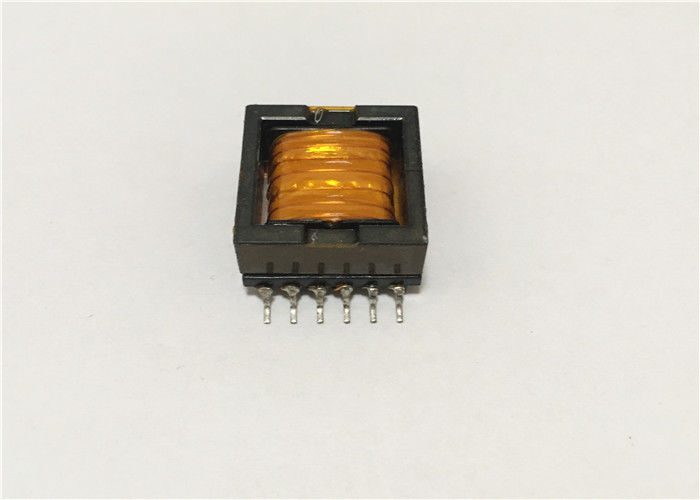

B82801A1135A125 EE4.2 1:125 400uH small SMT current sense transformers

 Product Applications:

• Suitable for switching power supplies
• Feedback control
• Overload sensing
• Load drop/shut down detection

Features of the B82801A1135A125​

• Very low DCR
• Different turns ratios
• Very small package
• RoHS Compatible

What is Current Sense Transformer?

1. Current transformers accurately sense and measure current flow in power supply circuits in a non-invasive way.

2. Ideally, they shunt a very small sample of the current to measure while dissipating minimal energy. The sensed current information is typically used to prevent overcurrent conditions and to monitor and control circuits in power supplies and other powered applications. Current sensors are frequently used to measure and control the load current in power supplies, safety circuits and a variety of control circuits.

3. In applications where controlling the current is required, such as in power supplies, accurately sensing the magnitude of the current is a fundamental requirement. Coilcraft manufactures wire-through-hole current sensors and SM current sense transformers for measuring current at frequencies from 50/60 Hz to greater than 1 MHz.

How to select the appropriate current sense transformer?

It is determing by your application begins:

1. The maximum current to be sensed
2. The frequency of the current waveform to be sensed
3. The duty cycle of the current waveform to be sensed
4. The desired output voltage across your terminating resistor

Specification Details:

Dimensions:

Application circuit and pinning:
