Product Details
Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,Reach,ISO9001-2001
Model Number: B82801A1404A070
Payment & Shipping Terms
Minimum Order Quantity: 500/1000
Price: negotiable
Packaging Details: Reel/Tray optional
Delivery Time: Stock Or 3~6weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 200K-pcs/month
Product Name: |

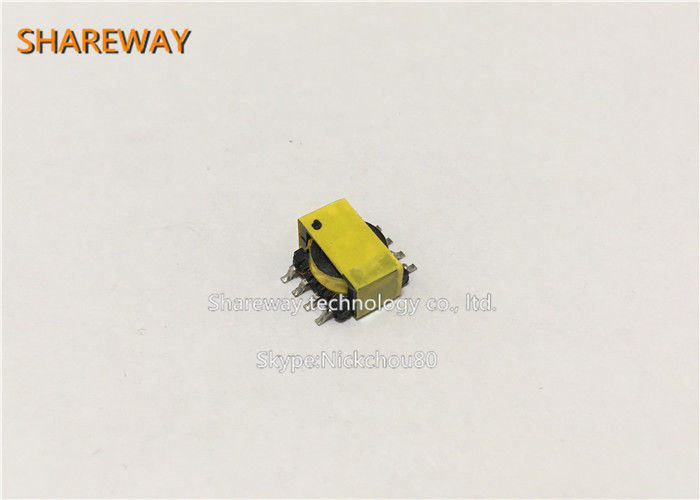

B82801A1404A070 EE4.2 1:70 400uH Small SMT Current Sense Transformers |
Moisture Sensitive: |
Yes |
Shielding: |
Unshielded |
Secondary Resistance: |
4600 MOhms |
Primary Resistance: |
2.5 MOhms |
Turns Tatios: |
1:70 |
Volt-time: |
20.0 Vus |
Other Truns Ratio: |
Available |
Product Name: |
B82801A1404A070 EE4.2 1:70 400uH Small SMT Current Sense Transformers |
Moisture Sensitive: |
Yes |
Shielding: |
Unshielded |
Secondary Resistance: |
4600 MOhms |
Primary Resistance: |
2.5 MOhms |
Turns Tatios: |
1:70 |
Volt-time: |
20.0 Vus |
Other Truns Ratio: |
Available |
Part Number | Trader Part number | Turns Ratio ( Pri: Sec) | Inductance Min (uH) | DCR max (mohms) | Frequency range (KHz) | Recommend Rt Ohm | Voltage-time V-us | |||
CT1101 | B82801A133A020 | 1:20 | 33 | 2.5/700 | 78 ->1000 | 20 | 5.76 | |||
CT1102 | B82801A1743A030 | 1:30 | 74 | 2.5/1100 | 31 ->1000 | 30 | 8.6 | |||
CT1103 | B82801A1134A040 | 1:40 | 132 | 2.5/1500 | 22 ->1000 | 40 | 11.5 | |||
CT1104 | B82801A1214A050 | 1:50 | 205 | 2.5/2400 | 16 ->1000 | 50 | 14.4 | |||
CT1105 | B82801A1304A060 | 1:60 | 295 | 2.5/3600 | 10 ->1000 | 60 | 17.3 |
Part Number | Trader Part number | Turns Ratio ( Pri: Sec) | Inductance Min (uH) | DCR max (mohms) | Frequency range (KHz) | Recommend Rt Ohm | Voltage-time V-us | |||
CT1101 | B82801A1333A020 | 1:70 | 33 | 2.5/700 | 78 ->1000 | 20 | 5.76 | |||
CT1106 | B82801A1407A070 | 1:70 | 400 | 2.5/4600 | 31 ->1000 | 70 | 20.0 | |||
CT1107 | B82801A1824A100 | 1:100 | 820 | 2.5/9000 | 22 ->1000 | 100 | 28.8 | |||
CT1108 | B82801A1135A125 | 1:125 | 1280 | 2.5/15000 | 16 ->1000 | 125 | 36.0 | |||
CT1109 | B82801A1185A150 | 1:150 | 1840 | 2.5/22700 | 10 ->1000 | 150 | 43.2 |
Dimensions:
Application circuit and pinning:
Related Products:
Isolation Transformer:
Single Phase Audio Amplifier Transformer:
RF Wideband transformer:
Push-Pull transformer used with Texas Instruments TIDA-00951 REV E2
