T4031 Signal Isolation Transformer 100Base - T For 2B1Q And 4B3T Coding

T4031 Signal Isolation Transformer 100Base - T For 2B1Q And 4B3T Coding
T4031 Signal Isolation Transformer 100Base - T For 2B1Q And 4B3T Coding T4031 Signal Isolation Transformer 100Base - T For 2B1Q And 4B3T Coding

Large Image :  T4031 Signal Isolation Transformer 100Base - T For 2B1Q And 4B3T Coding

Product Details:

Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: T4031

Payment & Shipping Terms:

Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: Tube and Carton
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 3000K.PCS/Month
Detailed Product Description
Product Name: T4031 Small Signal Transformer For Applications In 2B1Q And 4B3T Coding Type: ISDN U-Interface Transformer
Mounting: Small Surface Mount Package Size: 17.65mm*13.46mm*12.32mm
Speed: 100Base-T Feature: Small Compact Footprint
High Light:

small signal isolation transformer

,

10 pin transformer

T4031 Small Signal Transformer For Applications in 2B1Q and 4B3T Coding


Description:

ISDN U-INTERFACE TRANSFORMERS SMALL SURFACE MOUNT PACKAGE For Applications

in 2B1Q and 4B3T Coding.



Feature:

  • Matched to leading transceiver ICs
  • Meets ANSI T1.601-1992 and ETSI ETR 080 standards for longitudinal balance,                                     linearity and return loss
  • Small compact footprint and minimum Isolation: 1500 Vrms



Electrical Specifications @ 25°C
Part Number

Turns Ratio

Line:Chip

(±2%)

Line Side

Pins

OCL

Line side

(mH)

DCR

Line Side

(Ω)

DCR

Chip Side

(Ω)

Isolation

Voltage

(Vrms MIN)

Idc

(mA)

T4031 1.65CS:1CT (1-5) 13-18 14.00 MAX 7.00 MAX 1500 50
T4032 1.25CS:1CT (1-5) 11.9-16.1 6.40 MAX 4.40 MAX 1500 50
T4033 1.25CS:1CT (1-5) 25.5-30.5 15.66 MAX 10.65 MAX 1500 40
T4043* 2CS:1CS (1-5) 13.5-16.5 7.00 MAX 3.50 MAX 1500 50
T4067 1.32CS:1 (1-5) 7.5-8.3 2.50 MAX 2.50 MAX 1500 50





Additional Specifications
Part Number Return Loss Longitudinal Balance
T4031 10 kHz to 25 kHz @ 20 dB MIN 281 Hz to 40 kHz @ 55 dB MIN
T4032 15 kHz to 50 kHz @ 16 dB MIN 20 kHz to 150 kHz @ 40 dB MIN
T4033 10 kHz to 25 kHz @ 20 dB MIN 281 Hz to 40 kHz @ 55 dB MIN
T4043* 10 kHz to 25 kHz @ 20 dB MIN 281 Hz to 40 kHz @ 55 dB MIN
T4067 15 kHz to 50 kHz @ 16 dB MIN 15 kHz to 50 kHz @ 40 dB MIN





T4031 Small Signal Transformer For Applications in 2B1Q and 4B3T Coding


Shape and Dimensions:

T4031 Signal Isolation Transformer 100Base - T For 2B1Q And 4B3T Coding 0

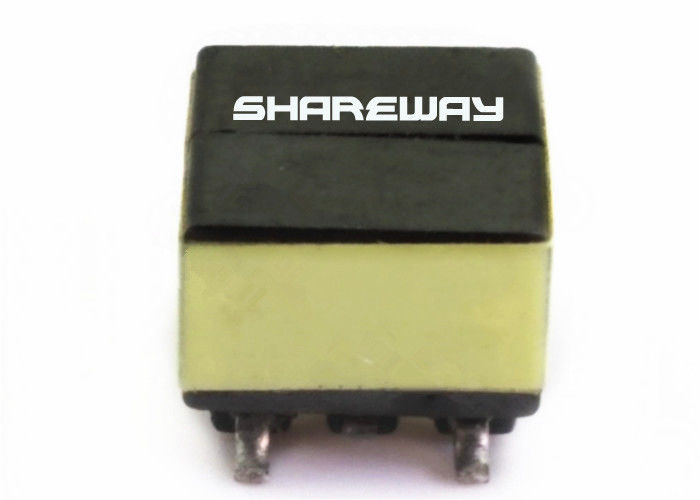

Product Picture:

T4031 Signal Isolation Transformer 100Base - T For 2B1Q And 4B3T Coding 1





T4031 Small Signal Transformer For Applications in 2B1Q and 4B3T Coding


HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.

Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs

Our service:
1. 100% tested before shipping
2. Have alternative for Halo, Pluse, , We-online, Chilisin, Coilcraft......Same quality but better price
3. Free sample available
4. Provide new design for customer
