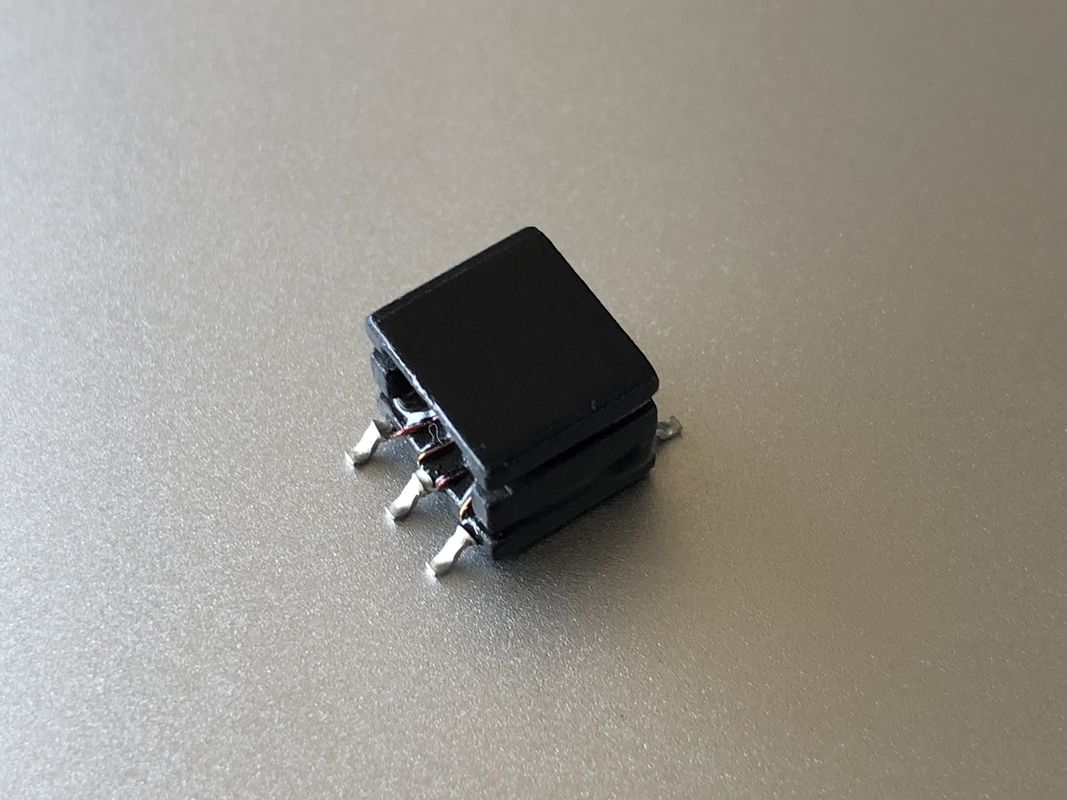

ST3425ANL 250uH Min 5kV Surface Mount Transformer For SN6505 DC DC Converter Application

I have had excellent support from Nick Chou at Shareway. We purchased some parts from him and he delivered the products on time and without incident.

—— Phil Hale -- CEO of PSwitches

I have worked with Nick Chou at Shareway for more than 5 years. The most impressive thing is you can always get quick response from him .

—— David Rosero -- CEO of Isolution Service Center

Hi, I am more than happy to confirm your quality is great and your overall business handle is top notch. You have always been an excellent and very accommodating company to us. If you need me to speak directly to them I am more than happy to do so.

—— Paul Harris-- CEO of AuroraMultimedia

I'm Online Chat Now

ST3425ANL 250uH Min 5kV Surface Mount Transformer For SN6505 DC DC Converter Application

ST3425ANL 250uH Min 5kV Surface Mount Transformer For SN6505 DC DC Converter Application
ST3425ANL 250uH Min 5kV Surface Mount Transformer For SN6505 DC DC Converter Application

Large Image :  ST3425ANL 250uH Min 5kV Surface Mount Transformer For SN6505 DC DC Converter Application

Product Details:

Place of Origin: Guangdong China
Brand Name: Shareway
Certification: RoHS, Reach
Model Number: ST3425ANL

Payment & Shipping Terms:

Minimum Order Quantity: 100/500/1000pcs
Price: 0.25~0.88US$
Packaging Details: Tube, Tape & Reel ,Tray different packing available
Delivery Time: Stock or 3 weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 280K.PCS/Month
Detailed Product Description
Product Name: ST3425ANL Is An 750343725 Alternative, 250uH Min 5kV Isolation Trafo For SN6505 DC-DC Converter Application Trader PN: 750343725
Application: DC-DC Converter Inductance: 250uH Min
Size: 10.2mm*10.0mm*6.6mm Mounting Type: SMT /SMD
Coil Type: Toroidal Package: SMD6
Warranty: 2 Years Rohs Status: RoHS Compliant
Highlight:

250uH Min Surface Mount Transformer

,

5kV Surface Mount Transformer

,

Toroidal audio isolation transformer

ST3425ANL is a 3.9:1  250uH Min Surface Mount 5KV Isolation Transformer, designed For TI SN650x DC-DC Converter Isolation  Application.


Description:


1. ST3425ANL is designed for Texas Instruments SN6051, SN6505,
SN6505A, and SN6505B DC-DC Converter Application.



2. ST3425ANL is suitable for DC-DC and other power applications, especially for the SN650X series for providing power to the isolated side of the interface.

3. 5000 Vrms 60 Seconds Isolation between windings in a miniature surface mount package.

4. The ST3425ANL  transformer has a plastic housing cover or stainless steel cover, which can provide an excellent surface for automated placement.

5. The ST3425ANL With a Minimum Vs rating of 11Vus,  creepage & clearance distance of 8mm minimum between primary and secondary.





The application of  ST3425ANL 3.9:1 250uH transformer:



  • Isolated interface power supply for CAN, RS-485, RS-422, RS-232, SPI, I2C, lower-power LAN
  • Industrial automation
  • Process control
  • Medical equipment & PLC analog and digital I/O modules
  • Isolated gate driver power supplies
  • AC motor drives & Uninterruptible power supplies (UPS)
  • Solar inverters & Polyphase energy meters
  • Protection relays and IEDs

Forward, Push-Pull Converters For DC/DC Converters SMPS Transformer 5000Vrms Isolation - Surface Mount
Common Mode choke




Part Number Trader Part number Turns Ratio V x T (Vμs) Isolation (VRMS) Dimensions (mm) Application  LDO   Power (W)
ST3429ANL 750313734 1:1.1±2% 11 5000 9.14 x 12.7 x 7.37 3.3V → 3.3V NO   2.5W
ST3469ANL 750313769 1:1.7±2% 11 5000 9.14 x 12.7 x 7.37 3.3V → 5 V NO   2.5W
ST3438ANL 750313638 1:1.3±2% 11 5000 9.14 x 12.7 x 7.37 3.3V → 3.3V / 5V → 5V YES   2.5W
ST3426ANL 750313626 1:2.1±2% 11 5000 9.14 x 12.7 x 7.37 3.3V → 5 V YES   2.5W
ST3425ANL 750343725 3.9:1±2%   5000 9.14 x 12.7 x 7.37 3.3V → 3.3V / 5V → 5V     2.5W
ST3668NL EPC3668G-LF 1:1.1±2%   2500 7.01 x 11 x4.19 3.3V → 3.3V / 5V → 5V NO   2.5W
SA2303 DA2303-AL 1:1.5±3% 34.4 2500 10 x 12.07 x 5.97 3.3V → 3.3V  /  5V → 5V YES   25W
SA2304 DA2304-AL 1:2.2±3% 21.5 2500 10 x 12.07 x 5.97 3.3V → 3.3V YES   25W
ST4618NL 760390011   7 2500 6.73 x 10.05 x 4.19 3.3V → 3.3V NO   2.5W
ST4818NL 760390012   11 2500 6.73 x 10.05 x 4.19 5V → 5V NO   2.5W




1. Inductance measured at 100 kHz, 0.1 Vrms, 0 Adc
2. Leakage inductance measured at 100 kHz, 0.1 Vrms with secondary pins shorted.
3. SRF measured with coils connected in series using an Agilent/HP 4192 or equivalent.
4. Operating temperature range −40°C to +125°C.
5. Electrical specifications at 25°C.


760390013  760390015
750313769  750313626
750316028  750316029
750316031  750316032
750316855  750316887
750316853  750317072
750315371  750316030
750316033  760390012
760390014  750313734
750313638  750315240
750342879  750343341
750316016  750316017
750316018  750316668
750316669  750316670
750316671  750316019
750316854  750316856
750316886  750316888
750316819  750316818
750316769  750316770
750343725  750317829
750317830  750342312
750343547  750343548
750317331  750317828


Shape and Dimensions:
ST3425ANL 250uH Min 5kV Surface Mount Transformer For SN6505 DC DC Converter Application 0


Product Picture:

 ST3425ANL 250uH Min 5kV Surface Mount Transformer For SN6505 DC DC Converter Application 1
