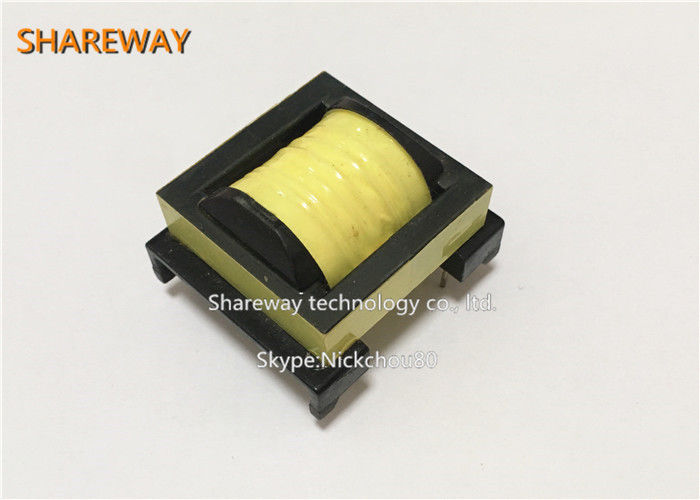

Product Name: EP-816SG SMPS Flyback Transformer Use For Small Electronic Equipment Application: Electronic Equipment
Type: THT Transformer Transformer Power: Customized
Bobbin: EE Series Outer Structure:: Vertical
High Light:

ferrite core transformer

,

high frequency transformer

EP-816SG SMPS Flyback Transformer Use For Small Electronic Equipment


D Electrical Properties:

Properties Test conditions   Value Unit Tol.
Inductance Base 100 kHz/ 100 mV LBASE 46.3 μH ±10%
Turns Ratio N1:N2:N3:N4:N5:N6 n 1:1:1:1:1:1
Rated Current Base ΔT = 40 K IR BASE 2.2 A typ.
Saturation Current Base |ΔL/L| < 10 % ISAT BASE 0.83 A typ.
DC Resistance Base @ 20 °C RDC BASE 45 max.
Leakage Inductance
Base
100 kHz/ 100 mV LS BASE 0.32 μH typ.
Insulation Test Voltage 3 mA/1 s UT 1 500 V (AC)



1. Inductance of a single winding

2. Rated Current of a single winding

3. Saturation Current of a single winding when all windings are driven. If not all windings are current driven

the Saturation current per winding is 6x Isatbase / number of driven windings

4. DC Resistance of a single winding

5. Insulation test voltage: between all windings





E General information:

It is recommended that the temperature of the part does not exceed +125°C under worst case conditions.

  • Storage Temperature: -40°C to 85°C
  • Operating Temperature: -40°C to 125°C
  • Test conditions of Electrical Properties: 20°C, 33% RH if not specified differently



Application:

  • LED driver
  • Lightening appliance
  • Communication equipment
  • LCD Power Supply
  • Switch Mode
  • DC/DC Converter



749197121 SMPS Flyback Transformer Use For Small Electronic Equipment


Shape and Dimensions:







Product Picture:Electronic Equipment SMPS Flyback Transformer , EP-816SG Mini Flyback Transformer 0





749197121 SMPS Flyback Transformer Use For Small Electronic Equipment


HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.

Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs

Our service:
1. 100% tested before shipping
2. Have alternative for Halo, Pluse, , We-online, Chilisin, Coilcraft......Same quality but better price
3. Free sample available
4. Provide new design for customer
