Medical Equipment SMPS Flyback Transformer Low Profile Transformer

Medical Equipment SMPS Flyback Transformer Low Profile Transformer
Medical Equipment SMPS Flyback Transformer Low Profile Transformer

Large Image :  Medical Equipment SMPS Flyback Transformer Low Profile Transformer

Product Details:

Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008

Payment & Shipping Terms:

Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: Tray, Tape or Reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 3000K.PCS/Month
Detailed Product Description
Product Name: Low Profile SMPS Flyback Transformer For Medical Equipment Application: Medical Equipment
Feature: Low Profile Type: Dry-type
Storage Temperature: -25℃ To +85℃ Material: Phenolic
High Light:

small flyback transformer

,

high frequency transformer

Low Profile SMPS Flyback Transformer For Medical Equipment


ELECTRICAL SPECIFICATIONS @25°C unless otherwise noted:

PARAMETER TEST CONDITIONS VALUE
D.C RESISTANCE             1-3 @20°C 0.35 ohms max
D.C RESISTANCE              6-4 @20°C 0.57 ohms max
INDUCTANCE                    1-3 100KHz, 100mVAC,Ls 475uH min
DIELECTRIC                      1-6 3125VAC, 1 second 2500VAC,1 minute
TURNS RATIO (6-4):(1-3) 2:1,±2%



GENERAL SPECIFICATIONS:

  • OPERATING TEMPERATURE RANGE: -40°C TO +125°C
  • CURRENT RATING:150mAAC
  • VOLTAGE- TIME:11VuS
  • Designed to comply with the following requirements as defined by IEC60950-1, EN60950-1, UL60950-1/CSA60950-1 and NZS60950.1: - Functional insulation for a primary circuit at a working voltage of 400Vrms.
  • Qualified to AEC-Q200.

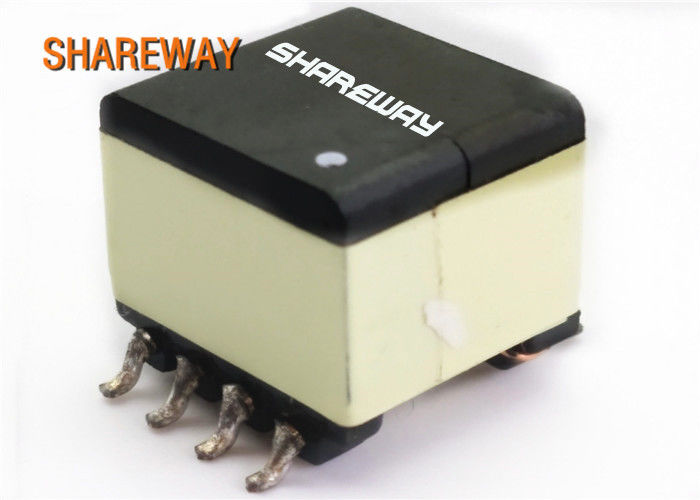

Product Picture:

Medical Equipment SMPS Flyback Transformer Low Profile Transformer 0





Low Profile SMPS Flyback Transformer For Medical Equipment


HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.

Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs
