Product Name: High Frequency Small Size SMPS Flyback Transformer Voltage-time: 11VuS
Size: 12.7mm*9.14mm*7.62 Usage: Ethernet Application
Phase: Single Coil Number: Other
High Light:

5000Vrms Small Flyback Transformer

,

11VuS SMPS Flyback Transformer

,

Small Size SMPS Flyback Transformer

High Frequency Small Size SMPS Flyback Transformer


ELECTRICAL SPECIFICATIONS @25°C unless otherwise noted:

PARAMETER TEST CONDITIONS VALUE
D.C RESISTANCE              1-3 @20°C 0.436 ohms max
D.C RESISTANCE              6-4 @20°C 0.581 ohms max
INDUCTANCE                     1-3 100KHz, 100mVAC,Ls 340uH min
DIELECTRIC                      1-6 6250Vrms, 1 second 5000Vrms,1 minute
TURNS RATIO (6-4):(1-3) 2:1,±2%



GENERAL SPECIFICATIONS:

  • OPERATING TEMPERATURE RANGE: -40°C TO +125°C including temp rise.
  • CURRENT RATING:150mAAC
  • VOLTAGE- TIME:11VuS
  • Complies with the following requirernents as defined by IEC60601-1(ed):aml: -Providing two means of Patient Protection up to a working voltage of 250VAC.
  • 8mm minimun creepage & clearance distance between PRI & SEC.
  • Complies with the following requirernents as defined by IEC60950-1,EN60950-1,UL60950-1/ CSA-60950-1 and AS/NZS60950-1: -Reinforced insulation for a primary circuit at a working voltage of 250VAC,overvoltage Category II,pollution Degree 2 ,up to 2Km above sea level.
  • Designed to comply with the following requirements as defined by IEC60664-1: -Reinforced insulation for a primary circuit at a working voltage of 400VAC up to 2Km above sea level.
  • Qualified to AEC-Q200.



Product Picture:

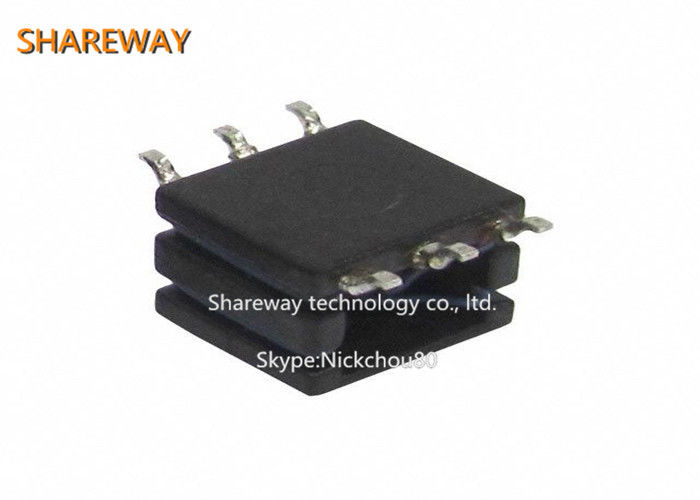

Small Size SMPS Flyback Transformer Single Phase High Frequency 0
