3+3 Pins SMPS Flyback Transformer PUSH PULL Surface Mount Transformer

I have had excellent support from Nick Chou at Shareway. We purchased some parts from him and he delivered the products on time and without incident.

—— Phil Hale -- CEO of PSwitches

I have worked with Nick Chou at Shareway for more than 5 years. The most impressive thing is you can always get quick response from him .

—— David Rosero -- CEO of Isolution Service Center

Hi, I am more than happy to confirm your quality is great and your overall business handle is top notch. You have always been an excellent and very accommodating company to us. If you need me to speak directly to them I am more than happy to do so.

—— Paul Harris-- CEO of AuroraMultimedia

I'm Online Chat Now

3+3 Pins SMPS Flyback Transformer PUSH PULL Surface Mount Transformer

3+3 Pins SMPS Flyback Transformer PUSH PULL Surface Mount Transformer
3+3 Pins SMPS Flyback Transformer PUSH PULL Surface Mount Transformer

Large Image :  3+3 Pins SMPS Flyback Transformer PUSH PULL Surface Mount Transformer

Product Details:

Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008

Payment & Shipping Terms:

Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: Tray, Tape or Reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 3000K.PCS/Month
Detailed Product Description
Product Name: Suface Mount 3+3Pins PUSH-PULL SMPS Flyback Transformer Application: Process Control
Type: SMD Transformer Size: 12.7mm*9.14mm*7.62mm
Shield: Shielded Material: Mn-Zn , Phenolic
High Light:

PUSH PULL Surface Mount Transformer

,

Phenolic SMPS Flyback Transformer

,

3 Pins SMPS Flyback Transformer

Suface Mount 3+3Pins PUSH-PULL SMPS Flyback Transformer


ELECTRICAL SPECIFICATIONS @25°C unless otherwise noted:

PARAMETER TEST CONDITIONS VALUE
D.C RESISTANCE 1-3 @20°C 0.426 ohms max
D.C RESISTANCE 6-4 @20°C 0.481 ohms max
INDUCTANCE 1-3 100KHz, 100mVAC,Ls 340uH min
DIELECTRIC 1-6 6250Vrms, 1 second 5000Vrms,1 minute
TURNS RATIO (6-4):(1-3) 1.7:1,±2%



GENERAL SPECIFICATIONS:

  • OPERATING TEMPERATURE RANGE: -40°C TO +125°C including temp rise.
  • CURRENT RATING: 150mAAC
  • VOLTAGE- TIME: 11VuS
  • Complies with the following requirernents as defined by IEC60601-1(ed):aml: -Providing two means of Patient Protection up to a working voltage of 250VAC.
  • 8mm minimun creepage & clearance distance between PRI & SEC.
  • Complies with the following requirernents as defined by IEC60950-1, EN60950-1, UL60950-1/ CSA-60950-1 and AS/NZS60950-1: -Reinforced insulation for a primary circuit at a working voltage of 250VAC, overvoltage Category II, pollution Degree 2 , up to 2Km above sea level.
  • Designed to comply with the following requirements as defined by IEC60664-1: -Reinforced insulation for a primary circuit at a working voltage of 400VAC up to 2Km above sea level.
  • Qualified to AEC-Q200.



Product Picture:

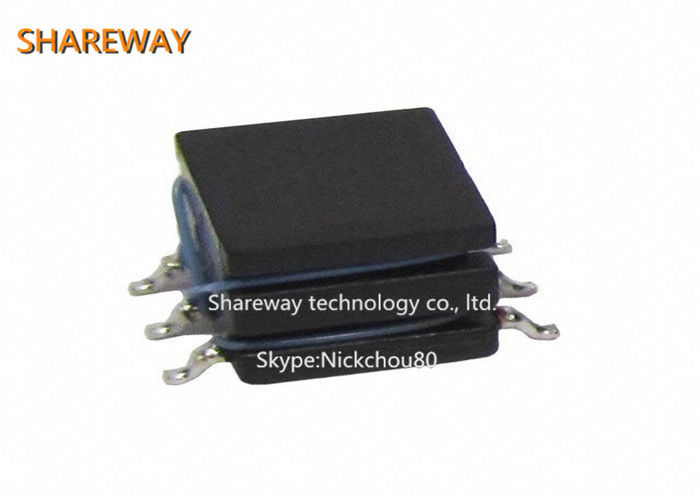

3+3 Pins SMPS Flyback Transformer PUSH PULL Surface Mount Transformer 0
