Product Name: SMPS Flyback Transformer For CAN, RS-485, RS-422, RS-232, SPI, I2C, Lower-Power LAN Usage: Lower-Power LAN
Type: Small Transformer Size: 12.6mm*8.3mm*4.1mm
Shield: Unshielded Sample: Free Samples
High Light:

ferrite core transformer

,

high frequency transformer

SMPS Flyback Transformer For CAN, RS-485, RS-422, RS-232, SPI, I2C, Lower-Power LAN


ELECTRICAL SPECIFICATIONS @25°C unless otherwise noted:

PARAMETER TEST CONDITIONS VALUE
D.C RESISTANCE           1-3 @20°C 0.100 ohms max
D.C RESISTANCE           6-4 @20°C 0.125 ohms max
INDUCTANCE                  1-3 100KHz, 100mVAC,Ls 72uH min
DIELECTRIC                   1-6 3125VAC, 1 second 2500VAC,1 minute
TURNS RATIO (6-4):(1-3) 1.7:1,±2%



GENERAL SPECIFICATIONS:

  • OPERATING TEMPERATURE RANGE: -40°C TO +125°C including temp rise
  • CURRENT RATING: 1A
  • VOLTAGE- TIME: 4.5VuS for Unipolar operation                                                                                                                    8.9Vus for Bipolar operation
  • Coplanarity: All 6 terminals must lie on a plane within  .004[.10] of Surface A after lead tinning.
  • Qualified to AEC-Q200.



Characteristics

  • Small Size
  • Surface Mount
  • Low Profile
  • Operating Temp: -40°C to 125°C
  • Standards Detail: IEC60950-1, EN60950-1/CSA60950-1 and AS/NZS609501.1
  • Standards Detail for High Voltage Series: IEC60664-1, IEC60950-1 and IEC60601-1
  • Functional or Reinforced Insulation

Applications

  • Isolated Interface Power Supply for CAN, RS-485, RS-422, RS-232, SPI, I2C, Lower-Power LAN
  • Industrial Automation
  • Process Control
  • Medical Equipment



Product Picture:

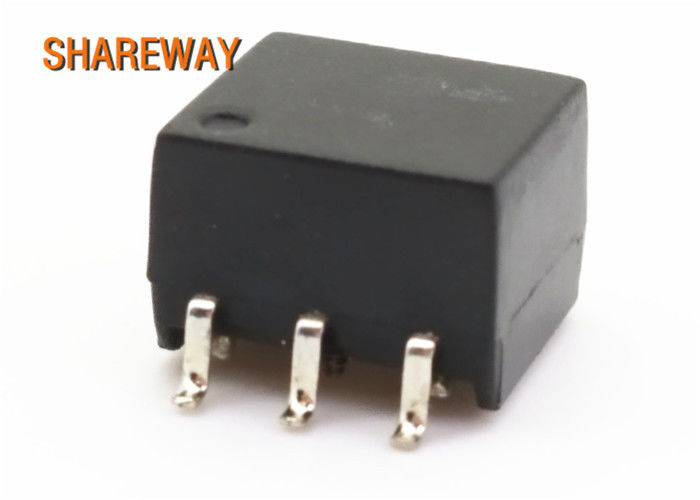

1 A Surface Mount Transformer For CAN / SPI / Lower Power LAN 0





SMPS Flyback Transformer For CAN, RS-485, RS-422, RS-232, SPI, I2C, Lower-Power LAN


HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.

Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
