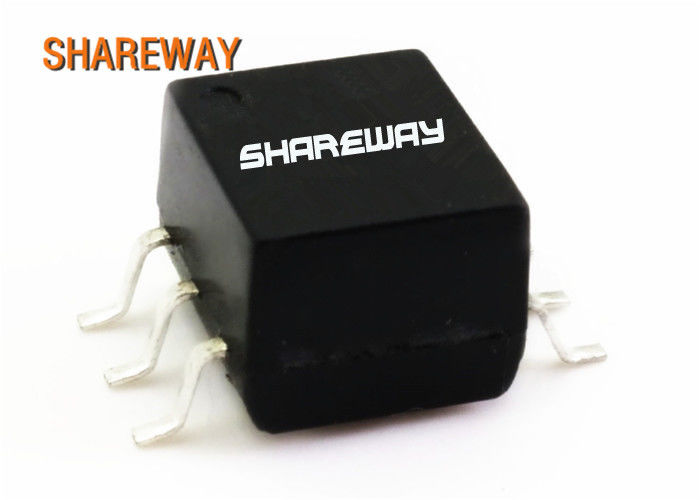

Electric SMD Audio Transformer 12.6*11.63*1.98mm Surface Mount

I have had excellent support from Nick Chou at Shareway. We purchased some parts from him and he delivered the products on time and without incident.

—— Phil Hale -- CEO of PSwitches

I have worked with Nick Chou at Shareway for more than 5 years. The most impressive thing is you can always get quick response from him .

—— David Rosero -- CEO of Isolution Service Center

Hi, I am more than happy to confirm your quality is great and your overall business handle is top notch. You have always been an excellent and very accommodating company to us. If you need me to speak directly to them I am more than happy to do so.

—— Paul Harris-- CEO of AuroraMultimedia

I'm Online Chat Now

Electric SMD Audio Transformer 12.6*11.63*1.98mm Surface Mount

Electric SMD Audio Transformer 12.6*11.63*1.98mm Surface Mount
Electric SMD Audio Transformer 12.6*11.63*1.98mm Surface Mount

Large Image :  Electric SMD Audio Transformer 12.6*11.63*1.98mm Surface Mount

Product Details:

Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: 750316670

Payment & Shipping Terms:

Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: Tray, Tape or Reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 3000K.PCS/Month
Detailed Product Description
Product Name: SMD Power Electric Audio SMPS Flyback Transformer Application: Electric Audio
Mount: Surface Mount Size: 12.6mm*11.63mm*1.98mm
Feature: Small Size Coil Number: Autotransformer
High Light:

ferrite core transformer

,

small flyback transformer

SMD Power Electric Audio SMPS Flyback Transformer


ELECTRICAL SPECIFICATIONS @25°C unless otherwise noted:

PARAMETER TEST CONDITIONS VALUE
D.C. RESISTANCE 2-4 @20°C 0.128 ohms max
D.C. RESISTANCE 9-7 @20°C 0.131 ohms max
D.C. RESISTANCE 10-6 @20°C 0.392 ohms max
INDUCTANCE 2-4 10KHz,10mVAC,Ls 72uH min
LEAKAGE INDUCTANCE 2-4 tie(6+7+8+9+10),100KHz,10mVAC,Ls 160nH typ,240nH max
DIELECTRIC 2-10 3125vac,1 second 2500VAC, 1 minute
TURNS RATIO (9-7):(2-4) 1.14:1±1%
TURNS RATIO (10-6):(2-4) 3.14:1±1%



GENERAL SPECIFICATIONS:

  • OPERATING TEMPERATURE RANGE: -40°C TO +125°C including temp rise.
  • Designed to comply with the following requirements as defined by IEC60950-1,EN60950-1,UL60950-1/CSA60950-1 and NZS60950.1: - Functional insulation for a primary circuit at a working voltage of 265Vrms.400Vpeak,Overvoltage Category .
  • VOLTAGE- TIME:8.9VuS
  • COPLANARITY:ALL 10 Terminals must lie on a plane within .004[.10 Surface A after lead thinning.

Application:

  • Process Control
  • Medical Equipment
  • Isolated Interface Power Supply for CAN, RS-485, RS-422, RS-232, SPI, I2C, Lower-Power LAN
  • Industrial Automation



SMD Power Electric Audio SMPS Flyback Transformer


HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.

Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
