Detailed Product Description
Product Name: 1812WBT1.5-1L_ SMPS Flyback Transformer Wideband RF Transformers Core Material: MnZn Power Ferrite Magnet
Phase: Single Usage: High Frequency
Bobbin Material: Phenolic Coil Structure: Toroidal
High Light:

Bobbin Phenolic Small Flyback Transformer

,

Wideband SMPS Flyback Transformer

,

RF SMPS Flyback Transformer

1812WBT1.5-1L_ SMPS Flyback Transformer Wideband RF Transformers


Product Description

Especially used in high density installation with good shielding quality ranged from audio frequency

to high frequency it could be designed appeopriate transformers.

These devices are widely used in PBX,fibreoptics communication equipment,digital communication

device interfac emulti-channel equipment,etc.

  • Large transmission power
  • Low loss
  • Wide frequency range
  • Low temperature rise
  • Stable performance
  • Widely used in SPC exchange, color TV, VCD, DVD, mobile charger,                                                                                                                                                                                                          PC power and other electronic instruments



Feature:

  • Provides wide band pass performance in a small SMT package.
  • 1812 size ferrite body with a ceramic base.
  • 50 V isolation, 1/4 Watt RF input power



Core material Ferrite
Terminations RoHS compliant gold over nickel over moly-manganese.
Other terminations available at additional cost.
Weight 131 – 152 mg
Ambient temperature –40°C to +85°C with Irms current
Storage temperature Component: –40°C to +85°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)





Part

number

Inductance

(μH)

Test frequency

(MHz)

Imp. ratio

pri : sec

DCR max

IDC

(mA)

Isolation

(Vrms)

Insertion

loss (dB)

Bandwidth

(MHz)

Color

dot

pri sec pri sec
1812WBT1.5-1L_ 5.0 3.3 10 1.5 : 1 1.05 0.87 400 50 <0.5 1.3–100 Red
1812WBT1.5-2L_ 2.5 1.6 10 1.5 : 1 0.74 0.58 500 50 <0.5 2.75–135 Orange
1812WBT1.5-3L_ 1.0 0.60 50 1.5 : 1 0.43 0.34 500 50 <0.75 7.2–200 Yellow
1812WBT1.5-4L_ 0.144 0.090 50 1.5 : 1 0.18 0.14 700 50 <2.25 38–535 Green





1812WBT1.5-1L_ SMPS Flyback Transformer Wideband RF Transformers


Shape and Dimensions:

1812WBT1.5-1L_ SMPS Flyback Transformer Wideband RF Transformers 0

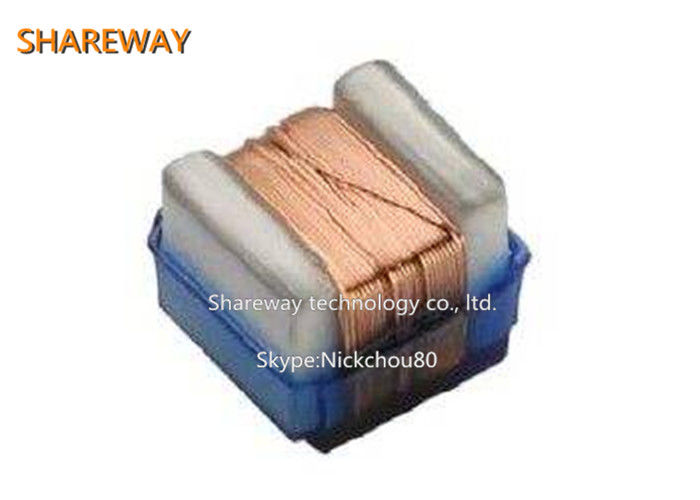

Product picture:
