Product Name: 1812WBT1.5-4L_ 50 V Isolation 1/4 Watt RF Input Power SMPS Flyback Transformer Type: Wideband RF Transformers
Mount: Surface Mount Isolation: 50 V
Core Material: Ferrite Sample: Free Samples Available
High Light:

1/4 Watt SMPS Flyback Transformer

,

Ferrite Core Small Flyback Transformer

,

RF Input SMPS Flyback Transformer

1812WBT1.5-4L_ 50 V isolation 1/4 Watt RF input power SMPS Flyback Transformer


Feature:

  • Provides wide band pass performance in a small SMT package.
  • 1812 size ferrite body with a ceramic base.
  • 50 V isolation, 1/4 Watt RF input power



Core material Ferrite
Terminations RoHS compliant gold over nickel over moly-manganese.
Other terminations available at additional cost.
Weight 131 – 152 mg
Ambient temperature –40°C to +85°C with Irms current
Storage temperature Component: –40°C to +85°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)









Part

number

Inductance

(μH)

Test frequency

(MHz)

Imp. ratio

pri : sec

DCR max

IDC

(mA)

Isolation

(Vrms)

Insertion

loss (dB)

Bandwidth

(MHz)

Color

dot

pri sec pri sec
1812WBT1.5-1L_ 5.0 3.3 10 1.5 : 1 1.05 0.87 400 50 <0.5 1.3–100 Red
1812WBT1.5-2L_ 2.5 1.6 10 1.5 : 1 0.74 0.58 500 50 <0.5 2.75–135 Orange
1812WBT1.5-3L_ 1.0 0.60 50 1.5 : 1 0.43 0.34 500 50 <0.75 7.2–200 Yellow
1812WBT1.5-4L_ 0.144 0.090 50 1.5 : 1 0.18 0.14 700 50 <2.25 38–535 Green





1812WBT1.5-4L_ 50 V isolation 1/4 Watt RF input power SMPS Flyback Transformer


Shape and Dimensions:

RF Input Power SMPS Flyback Transformer 1812WBT1.5-4L_ 1/4 Watt 0





Product picture:

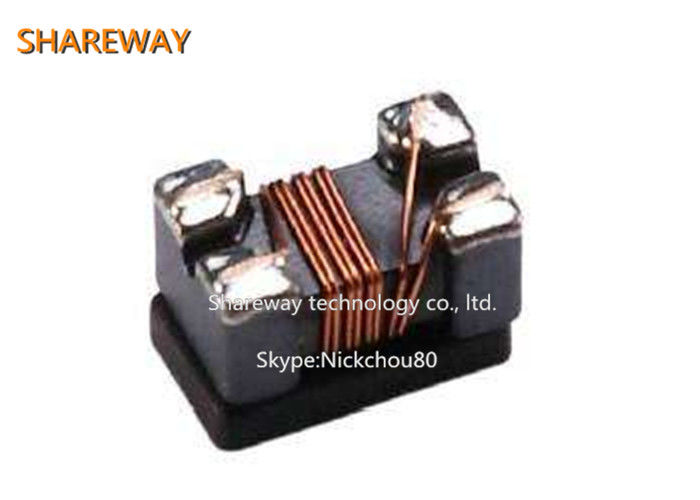

RF Input Power SMPS Flyback Transformer 1812WBT1.5-4L_ 1/4 Watt 1
