1812WBT2-4L_ SMPS Flyback Transformer For Mobile Phone Charger

Product Details

Place of Origin: Guangdong China

Brand Name: Shareway

Certification: CE UL RoHS ISO9001:2008

Model Number: 1812WBT2-4L_

Payment & Shipping Terms

Minimum Order Quantity: 100/500/1000

Price: Supportive

Packaging Details: 2200/reel

Delivery Time: Stock or 3 weeks

Payment Terms: TT,Paypal

Supply Ability: 3000K.PCS/Month

Get Best Price
Highlight:

ferrite core transformer

,

high frequency transformer

Product Name:
1812WBT2-4L_ SMPS Flyback Transformer For Mobile Phone Charger
Color Dot:
Yellow
Bandwidth:
11–200
Insertion Loss:
<1.5 DB
Isolation:
50 Vrms
Inductance:
0.910 UH
Product Name:
1812WBT2-4L_ SMPS Flyback Transformer For Mobile Phone Charger
Color Dot:
Yellow
Bandwidth:
11–200
Insertion Loss:
<1.5 DB
Isolation:
50 Vrms
Inductance:
0.910 UH
1812WBT2-4L_ SMPS Flyback Transformer For Mobile Phone Charger

1812WBT2-4L_ SMPS Flyback Transformer For Mobile Phone Charger


Feature:

  • Provides wide band pass performance in a small SMT package.
  • 1812 size ferrite body with a ceramic base.
  • 50 V isolation, 1/4 Watt RF input power



Core material Ferrite
Terminations RoHS compliant gold over nickel over moly-manganese.
Other terminations available at additional cost.
Weight 131 – 152 mg
Ambient temperature –40°C to +85°C with Irms current
Storage temperature Component: –40°C to +85°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)





APPLICATION

LED driver

Lightening appliance

Communication equipment

Switching Power Supply

Main Power Transformer

LCD Power Supply

Main Power Transformer

Household appliances

Office equipment

A Variety Of Small Electronic Equipment And Instruments





Product Name
1812WBT1.5-2L_ Surface Mount SMPS Flyback Transformer with Rohs
Material
gold over nickel over moly-manganese.
Color
Orange
Standard
high power density
Grade
High-temperature resistant
Temperature grade
Operating temperature -40℃to+125℃
Thread
coarse, fine
Used
Suitable for wide range of switching power supply / power transformer/ LED driver transformer/current transformer/distribuition transforme





Part

number

Inductance

(μH)

Test frequency

(MHz)

Imp. ratio

pri : sec

DCR max

(Ohms)

IDC

(mA)

Isolation

(Vrms)

Insertion

loss (dB)

Bandwidth

(MHz)

Color

dot

1812WBT-1L_ 14 10 1 : 1 4.8 200 50 <1 0.340–22 Yellow
1812WBT-2L_ 5.3 10 1 : 1 1.8 400 50 <1 0.800–60 Green
1812WBT-3L_ 1.25 50 1 : 1 0.7 500 50 <1 4–200 White
1812WBT-4L_ 0.220 50 1 : 1 0.3 700 50 <1 11–480 Orange
1812WBT-5L_ 0.090 50 1 : 1 0.15 700 50 <1.5 48–645 Red





1812WBT2-4L_ SMPS Flyback Transformer For Mobile Phone Charger


Shape and Dimensions:

1812WBT2-4L_ SMPS Flyback Transformer For Mobile Phone Charger 0





Product picture:

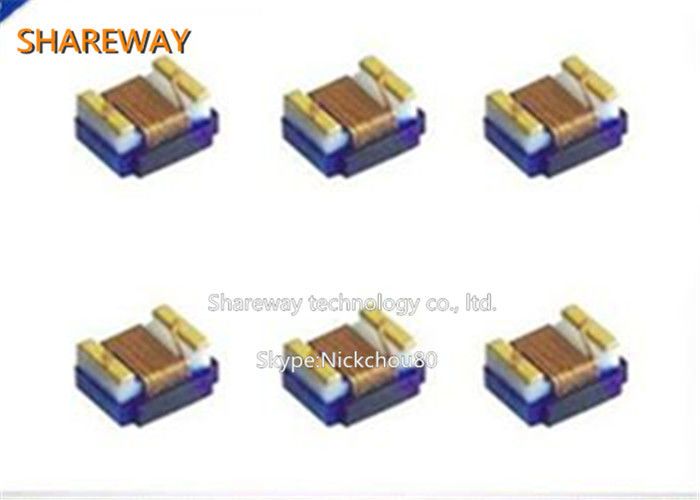

1812WBT2-4L_ SMPS Flyback Transformer For Mobile Phone Charger 1
