Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: WB1010-PCL / WB1010-SML_
Payment & Shipping Terms
Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: Reel ,Tube
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 5000K.PCS/Month
Product Name: |
WB1010-PCL / WB1010-SML_ Small Size SMPS Flyback Transformer |
Mount Type: |
Surface Mount And Through Hole Versions |
Material: |
Matte Tin Over Nickel Over Phos Bronze |
Weight: |
0.37 – 0.39 G |
Core Material: |
Ferrite |
Size: |
Small |
Product Name: |
WB1010-PCL / WB1010-SML_ Small Size SMPS Flyback Transformer |
Mount Type: |
Surface Mount And Through Hole Versions |
Material: |
Matte Tin Over Nickel Over Phos Bronze |
Weight: |
0.37 – 0.39 G |
Core Material: |
Ferrite |
Size: |
Small |
WB1010-PCL / WB1010-SML_ Small Size SMPS Flyback Transformer
Feature:
• Surface mount and through hole versions
• 500 V interwinding isolation, 1/4 Watt RF input power
• 250 mA max current rating.
• For a smaller package size.
Core material Ferrite
Terminations RoHS compliant matte tin over nickel over phos
bronze. Other terminations available at additional cost.
Weight 0.37 – 0.39 g
Ambient temperature –40°C to +85°C
Storage temperature Component: –40°C to +85°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)
| Part number |
Impedance ratio pri : sec |
IDC max (mA) |
Frequency (MHz) |
Pri (pins 1–3) | Sec (pins 6–4) | |||
| Through-hole | Surface mount |
L min (μH) |
DCR max (Ohms) |
L min (μH) |
DCR max (Ohms) |
|||
| WB1010-PCL | WB1010-SML_ | 1 : 1 | 250 | 0.005 – 100 | 780 | 0.320 | 780 | 0.320 |
| WB1010-1-PCL | WB1010-1-SML_ | 1 : 1 | 250 | 0.04 – 175 | 95 | 0.200 | 95 | 0.200 |
| WB1015-PCL | WB1015-SML_ | 1.5 : 1 | 250 | 0.1 – 150 | 80 | 0.145 | 51 | 0.130 |
| WB1040-PCL | WB1040-SML_ | 4 : 1 | 250 | 0.2 – 300 | 95 | 0.160 | 25 | 0.115 |
| WB2010-PCL | WB2010-SML_ | 1 : 1 | 250 | 0.005 – 100 | 780 | 0.320 | 780 | 0.320 |
| WB2010-1-PCL | WB2010-1-SML_ | 1 : 1 | 250 | 0.04 – 175 | 95 | 0.200 | 95 | 0.200 |
| WB2040-PCL | WB2040-SML_ | 4 : 1 | 250 | 0.2 – 300 | 95 | 0.160 | 25 | 0.115 |
| WB3010-PCL | WB3010-SML_ | 1 : 1 | 250 | 0.005 – 100 | 780 | 0.320 | 780 | 0.320 |
| WB3010-1-PCL | WB3010-1-SML_ | 1 : 1 | 250 | 0.04 – 175 | 95 | 0.200 | 95 | 0.200 |
| WB3015-PCL | WB3015-SML_ | 1.5 : 1 | 250 | 0.1 – 150 | 80 | 0.145 | 51 | 0.130 |
| WB3040-PCL | WB3040-SML_ | 4 : 1 | 250 | 0.2 – 300 | 95 | 0.160 | 25 | 0.115 |
WB1010-PCL / WB1010-SML_ Small Size SMPS Flyback Transformer
Shape and Dimensions:

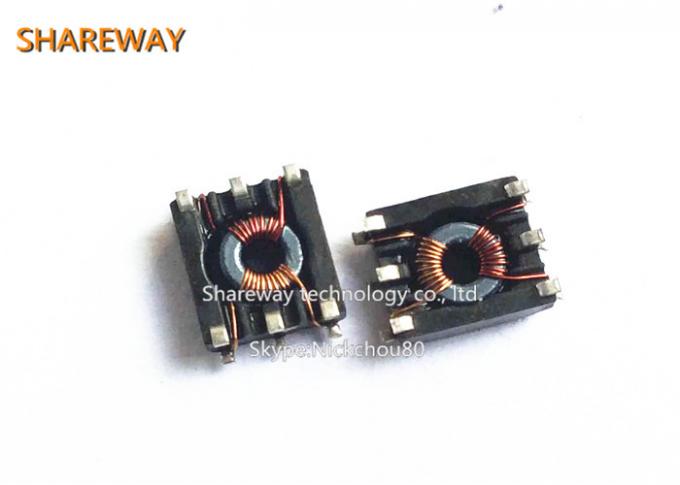

Product picture:
