Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: A9900-A
Payment & Shipping Terms
Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: Reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 3000K.PCS/Month
Product Name: |
A9900-A SMPS Flyback Transformer For Coupling And Signal Inversion |
Usage: |
Coupling And Signal Inversion |
Type: |
SMPS Flyback Transformer |
Mount Type: |
SMD |
Size: |
Small Size |
Weight: |
168 Mg |
Product Name: |
A9900-A SMPS Flyback Transformer For Coupling And Signal Inversion |
Usage: |
Coupling And Signal Inversion |
Type: |
SMPS Flyback Transformer |
Mount Type: |
SMD |
Size: |
Small Size |
Weight: |
168 Mg |
A9900-A SMPS Flyback Transformer for coupling and signal inversion
Feature:
• Applications: impedance matching, balanced/unbalanced
mixing, power splitting, coupling and signal inversion, etc.
• 250 mA max current rating.
Core material Ferrite
Terminations Tin-silver-copper over silver-platinum-glass frit
Weight 168 mg
Ambient temperature –40°C to +85°C
Storage temperature Component: –40°C to +85°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)
Packaging 1000/13″ reel; Plastic tape: 16 mm wide, 0.34 mm thick,
12 mm pocket spacing, 4,83 mm pocket depth
|
Part number |
Impedance ratio pri:sec |
Frequency range (MHz) |
Insertion loss max (dB) |
Pins 1-3 | Pins 6-4 | ||
|
L min (μH) |
DCR max (mOhms) |
L min (μH) |
DCR max (mOhms) |
||||
| A9900-A | 1:1 | 0.525 – 1000 | 1.20 | 7.0 | 200.0 | 7.0 | 200.0 |
Similar products:
| Z9169-A | A9899-A | A9900-A |
A9900-A SMPS Flyback Transformer for coupling and signal inversion

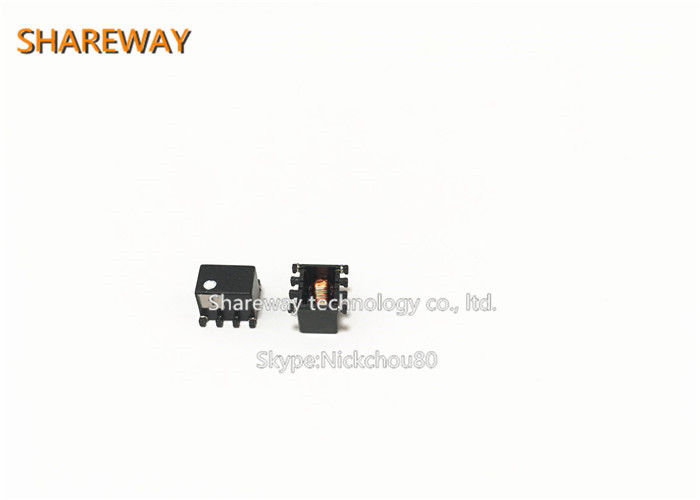

Product picture:
