Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: GA3291-AL_
Payment & Shipping Terms
Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: 175pcs/Reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 3000K.PCS/Month
Product Name: |
GA3291-AL_ Forward Converter Transformer For Akros AS1130 PoE Controller |
Weight: |
10.7 G |
Feature: |
DC-DC Conversion |
Size: |
20.57*21.0*10.8 |
Pin: |
6+6 |
Shield: |
Shielded |
Product Name: |
GA3291-AL_ Forward Converter Transformer For Akros AS1130 PoE Controller |
Weight: |
10.7 G |
Feature: |
DC-DC Conversion |
Size: |
20.57*21.0*10.8 |
Pin: |
6+6 |
Shield: |
Shielded |
GA3291-AL_ Forward Converter Transformer For Akros AS1130 PoE Controller
Feature:
• Developed for Akros Silicon AS1130, 30 W PoE Controller with
Integrated DC-DC Conversion
• Designed for forward topology operating at 350 kHz
• 1500 Vrms, one minute isolation from primary to secondary
Core material :Ferrite
Terminations: RoHS tin-silver over tin over nickel over phos bronze.
Other terminations available at additional cost.
Weight :10.7 g
Ambient temperature :–40°C to +125°C
Storage temperature Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity
|
Part number |
Inductance ±25% (μH) |
DCR max (Ohms) |
Leakage inductance max (μH) |
Input voltage range (V) |
Turns ratio pri : sec |
Output |
Input filter inductor |
Output filter inductor |
|
| pri | sec | ||||||||
| GA3291-AL_ | 203 | 0.065 | 0.031 | 0.215 | 36 – 57 | 1 : 0.923 | 12 V, 2.5 A | DO1608C-103 | MSS1278-683 |
GA3291-AL_ Forward Converter Transformer For Akros AS1130 PoE Controller
Shape and Dimensions:

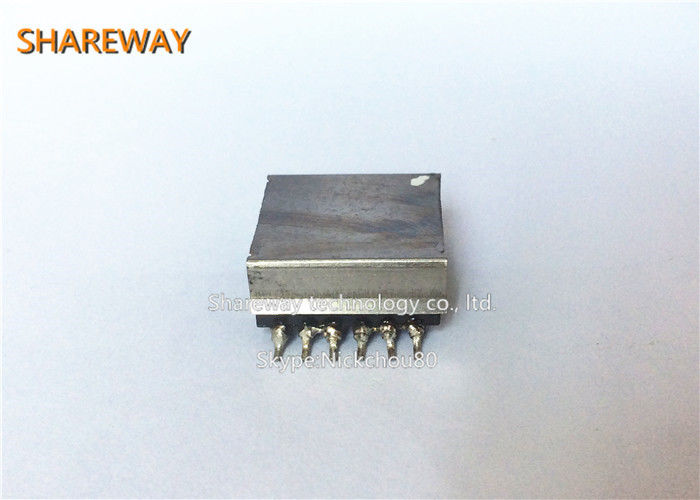

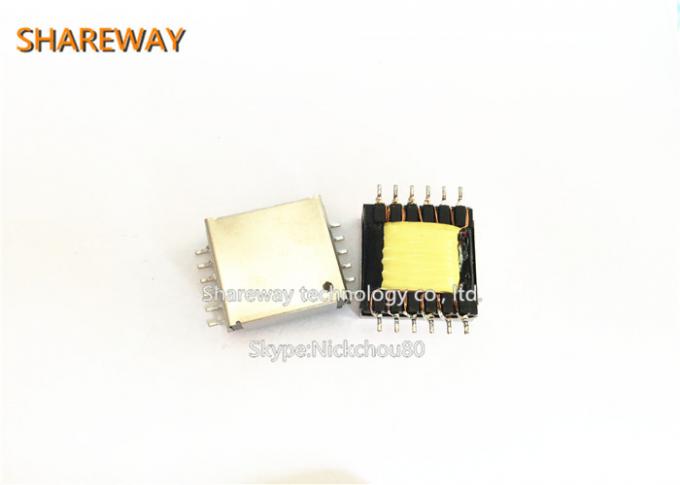

Product picture:
