SMPS Flyback Transformer DA2062-AL_ For DC-DC converters based

Product Details

Place of Origin: Guangdong China

Brand Name: Shareway

Certification: CE UL RoHS ISO9001:2008

Model Number: DA2062-AL_

Payment & Shipping Terms

Minimum Order Quantity: 100/500/1000

Price: Supportive

Packaging Details: 175pcs/Reel

Delivery Time: Stock or 3 weeks

Payment Terms: TT,Paypal

Supply Ability: 5000K.PCS/Month

Get Best Price
Highlight:

ferrite core transformer

,

high frequency transformer

Product Name:
SMPS Flyback Transformer DA2062-AL_ For DC-DC Converters Based
Application:
DC-DC Converters Based
Input:
36 – 57 V
Core Material:
Ferrite
Weight:
2.4 G
Ambient Temperature:
–40°C To +125°C
Product Name:
SMPS Flyback Transformer DA2062-AL_ For DC-DC Converters Based
Application:
DC-DC Converters Based
Input:
36 – 57 V
Core Material:
Ferrite
Weight:
2.4 G
Ambient Temperature:
–40°C To +125°C
SMPS Flyback Transformer DA2062-AL_ For DC-DC converters based

SMPS Flyback Transformer DA2062-AL_ For DC-DC converters based


Feature:

• Flyback Transformer For DC-DC converters based on Power Integrations DPA423G

• Designed in accordance with Power Integrations Engineering Prototype Report EPR-86
• Operates in continuous conduction mode with 36 – 57 V input
• 1500 Vrms isolation between primary and secondary





Core material Ferrite
Terminations RoHS tin-silver over tin over nickel over phos bronze.
Other terminations available at additional cost.
Weight 2.4 g
Ambient temperature –40°C to +125°C
Storage temperature Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)
Packaging 400 per 13″ reel Plastic tape: 32 mm wide, 0.4 mm thick,
20 mm pocket spacing, 7.6 mm pocket depth





Part

number

Inductance

at 0 Adc

±10% (μH)

Inductance

at Ipk

min (μH)

DCR max

(Ohms)

Leakage

inductance

max (μH)

Turns ratios

Ipk

(A)

Secondary

output

pri : sec pri : bias
DA2062-AL_ 120 97

0.475 (pins 3 – 1)

0.013 (pins 9 – 6)

0.013 (pins 10 – 7)

0.181 (pins 4 – 5)

3.0 1 : 0.1 1 : 0.4 0.64 3.3 V, 2 A





SMPS Flyback Transformer DA2062-AL_ For DC-DC converters based


Shape and Dimensions:

SMPS Flyback Transformer DA2062-AL_  For DC-DC converters based 0





Product picture:

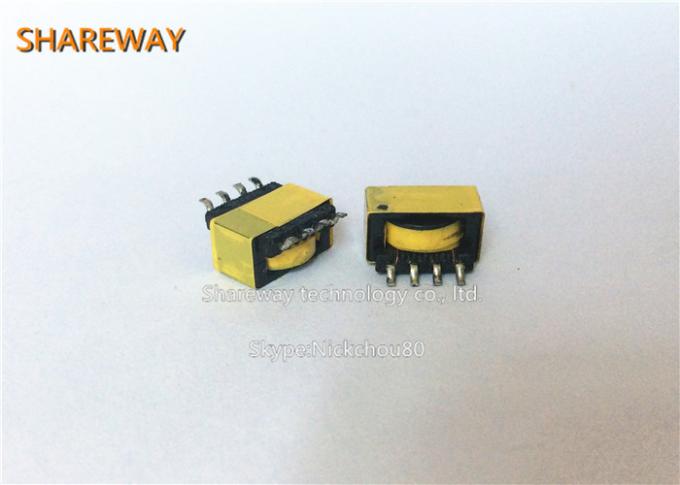

SMPS Flyback Transformer DA2062-AL_  For DC-DC converters based 1
