Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: FA2732-AL_
Payment & Shipping Terms
Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: 175pcs/Reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 3000K.PCS/Month
Product Name: |
FA2732-AL_ SMPS Flyback Transformer For Applications Up To 10 Watts |
Application: |
For Applications Up To 10 Watts |
Output: |
12.0 V, 0.83 A |
Size: |
11.0*15.24*12.7mm |
Pin: |
4+4 |
Weight: |
3.8 – 3.9 G |
Product Name: |
FA2732-AL_ SMPS Flyback Transformer For Applications Up To 10 Watts |
Application: |
For Applications Up To 10 Watts |
Output: |
12.0 V, 0.83 A |
Size: |
11.0*15.24*12.7mm |
Pin: |
4+4 |
Weight: |
3.8 – 3.9 G |
FA2732-AL_ SMPS Flyback Transformer for applications up to 10 Watts
Description:
Core material Ferrite
Terminations RoHS tin-silver over tin over nickel over phos bronze.
Other terminations available at additional cost.
Weight 3.8 – 3.9 g
Ambient temperature –40°C to +85°C
Storage temperature Component: –40°C to +85°C.
Tape and reel packaging: –40°C to +80°C
Maximum part temperature +125°C (ambient + temp rise)
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)
|
Part number |
Power (W) |
Inductance at 0 A ±10% (μH) |
Inductance at Ipk min (μH) |
DCR max (Ohms) |
Leakage inductance max (μH) |
Turns ratio pri : sec |
Ipk (A) |
Output | |
| pri | sec | ||||||||
| FA2671-AL_ | 10 | 40.0 | 36.0 | 0.098 | 0.023 | 0.395 | 1 : 0.3 | 1.3 | 3.3 V, 3.0 A |
| FA2672-AL_ | 10 | 40.0 | 36.0 | 0.098 | 0.045 | 0.340 | 1 : 0.4 | 1.3 | 5.0 V, 2.0 A |
| FA2732-AL_ | 10 | 40.0 | 36.0 | 0.098 | 0.156 | 0.370 | 1 : 1 | 1.3 | 12.0 V, 0.83 A |
FA2732-AL_ SMPS Flyback Transformer for applications up to 10 Watts
Shape and Dimensions:

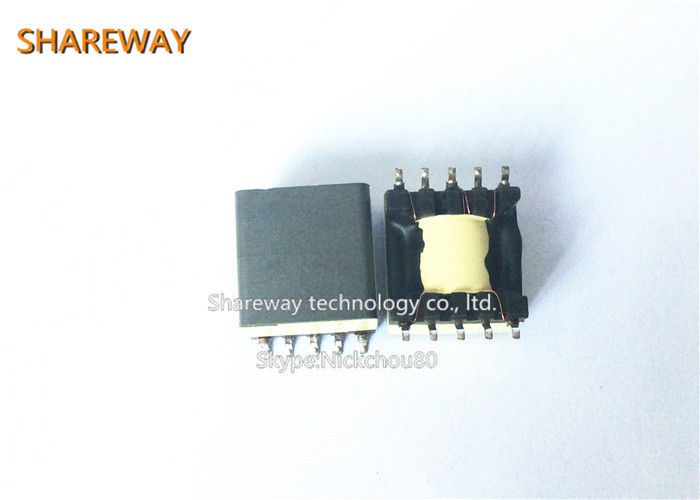

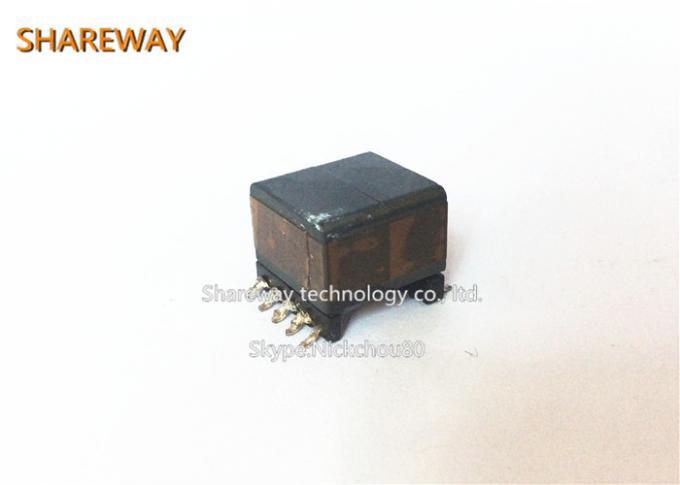

Product picture:
