36 – 72 V input FA2924-AL_ for Power over Ethernet PD controllers

36 – 72 V input FA2924-AL_ for Power over Ethernet PD controllers
36 – 72 V input FA2924-AL_ for Power over Ethernet PD controllers

Large Image :  36 – 72 V input FA2924-AL_ for Power over Ethernet PD controllers

Product Details:

Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: FA2924-AL_

Payment & Shipping Terms:

Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: 175pcs/Reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 5000K.PCS/Month
Detailed Product Description
Product Name: 36 – 72 V Input FA2924-AL_ For Power Over Ethernet PD Controllers Application: Power Over Ethernet PD Controllers
Input: 36 – 72 V Pin: 5+5
Size: 12.7*17.75*13.46mm Mount: Surface Mount
High Light:

ferrite core transformer

,

small flyback transformer

36 – 72 V input FA2924-AL_ for Power over Ethernet PD controllers


Description:
• Flyback Transformers For Silicon Laboratories Si3402 PD Controllers
• Designed for Power over Ethernet PD controllers for applications up to 15 Watts.
• Operates in continuous conduction mode with 36 – 72 V input
• 1500 Vrms, one minute isolation between primary and secondary





Part

number

Power

(W)

Inductance

at 0 A

±10% (μH)

Inductance

at Ipk

min (μH)

DCR max (Ohms)

Leakage

inductance

max (μH)

Turns ratio

pri : sec

Ipk

(A)

Output
pri sec
FA2924-AL_ 15 40.0 36.0 0.100 0.025 0.666 1 : 0.3 2.0 3.3 V, 4.5 A
FA2805-CL_ 15 40.0 36.0 0.108 0.040 0.621 1 : 0.4 2.0 5.0 V, 3.0 A
FA2925-AL_ 15 40.0 36.0 0.100 0.155 0.566 1 : 1 2.0 12.0 V, 1.25 A





36 – 72 V input FA2924-AL_ for Power over Ethernet PD controllers


Shape and Dimensions:

36 – 72 V input FA2924-AL_ for Power over Ethernet PD controllers 0

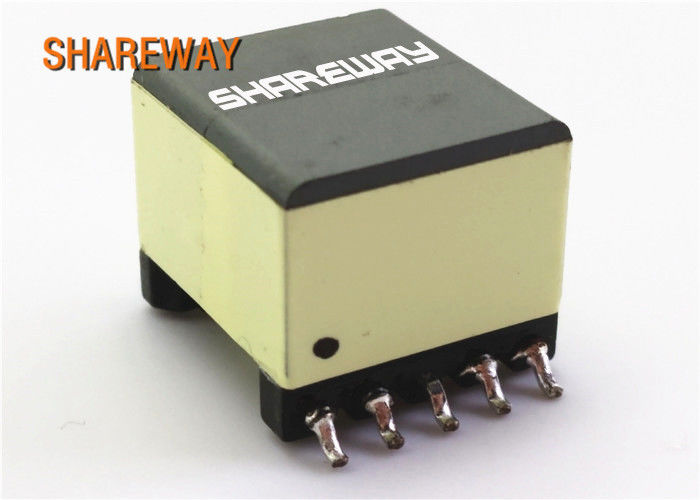

Product picture:

36 – 72 V input FA2924-AL_ for Power over Ethernet PD controllers 1
