Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: C1173-AL_
Payment & Shipping Terms
Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: 175pcs/Reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 3000K.PCS/Month
Product Name: |
Flyback Transformer C1173-AL_ For PoE Powered Device Controller |
Drive Output: |
5.6 V, 10 MA |
Output: |
3.3 V, 3 A |
Color: |
Silvery&Black |
Weight: |
5.0 – 5.3 G |
Ambient Temperature: |
–40°C To +125°C |
Product Name: |
Flyback Transformer C1173-AL_ For PoE Powered Device Controller |
Drive Output: |
5.6 V, 10 MA |
Output: |
3.3 V, 3 A |
Color: |
Silvery&Black |
Weight: |
5.0 – 5.3 G |
Ambient Temperature: |
–40°C To +125°C |
Flyback Transformer C1173-AL_ For T.I. TPS23750 PoE Powered Device Controller
Description:
• These transformer are developed for Texas Instruments PMP929 reference design. Suitable for TPS23750 chipset.
• Operates up to 500 kHz with 18 – 72 V input
• 1500 Vrms, one minute isolation primary and bias to secondary
Core material: Ferrite
Weight 5.0 – 5.3 g
Ambient temperature –40°C to +125°C
Storage temperature Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
| Part Number | Trader Part Number | Inductance @ 0 A ± 10% (uH) | L at Ipk Min (uH) | Pri DCR Max (Ohms) | Sec DCR Max (Ohms) | Drive DCR Max (Ohms) | Bais DCR Max (Ohms) | Lk Max (uH) | Pri: Sec Turns Ratio | Pri: Drive Turns Ratio | Pri: Bias Turns Ratio | Ipk (A) | Output | Drive output | |
| SA1173 | C1173-AL | 166.5 | 150 | 0.77 | 0.02 | 0.523 | 1.12 | 2.50 | 6.5:1 | 3.7:1 | 2.0:1 | 1.2 | 3.3V , 3A | 5.6V 10mA | |
| SA1174 | C1174-AL | 150.0 | 135.0 | 0.515 | 0.023 | 0.570 | 0.88 | 2.00 | 5.0:1 | 3.2:1 | 2.25:1 | 1.2 | 5.0V, 2A | 7.5V, 10mA | |
| SA3562 | GA3562-BL | 166.5 | 150.0 | 0.740 | 0.100 | 0.456 | 1.15 | 2.05 | 2.0:1 | 4.0:1 | 2.0:1 | 1.2 | 12V, 0.83A | 6.0V, 10mA |
1. Inductance is for the primary, measured at 100 kHz, 0.1 Vrms.
2. Peak primary current drawn at minimum input voltage.
3. DCR for secondary is with windings connected in parallel.
4. Leakage inductance for the primary is with the secondary and drive windings shorted; leakage
inductance for the drive winding is with the secondary windings shorted.
6. Turns ratio is with both secondary windings connected in parallel.
7. Output of the secondary is with the windings connected in parallel. Bias winding output is 10 V, 20 mA.
Flyback Transformer C1173-AL_ For T.I. TPS23750PoE Powered Device Controller
Shape and Dimensions:

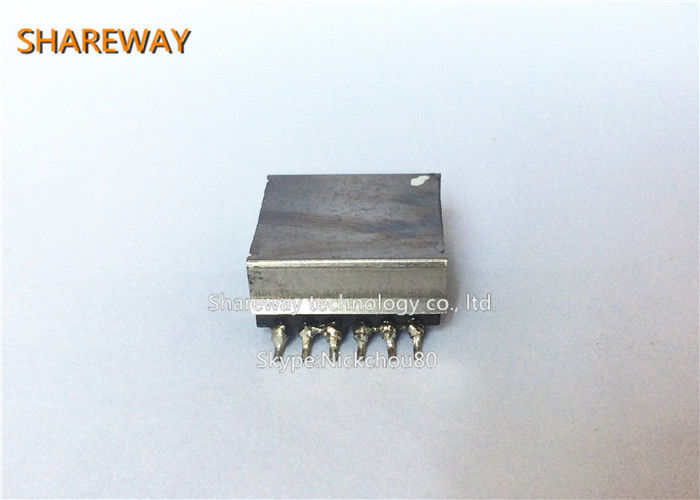

Product picture:
HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. 2~5 pcs free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods are finished, we send the goods to you and advise the tracking number.
7. We will track your goods until you receive them.
Remarks:
1. Sample orders are available.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are available.
4. Contact us for the available flavors list.
International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs
