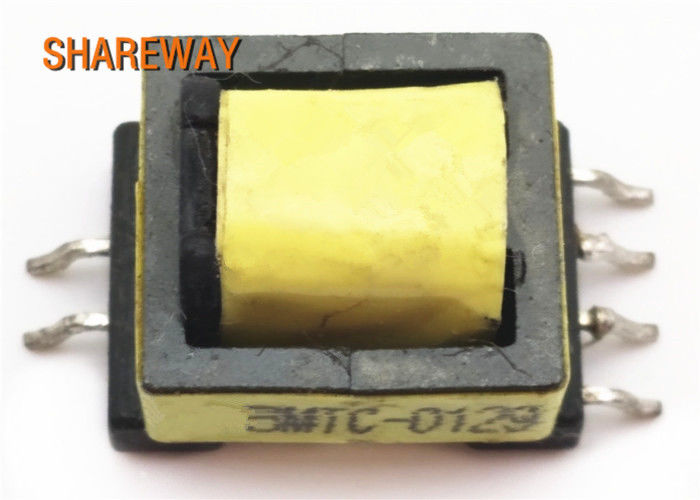

Product Name: 11.3 G Weight NA5730-AL_ SMPS Flyback Transformer PD Controllers Usage: PD Controllers
Core Material: Ferrite Type: SMPS Flyback Transformer
Size: 21.0*20.57*11.43mm Weight: 11.3 G
High Light:

small flyback transformer

,

high frequency transformer

11.3 g Weight NA5730-AL_ SMPS Flyback Transformer PD Controllers


Description:

• Flyback transformer for Texas Instruments TPS23751 and
TPS23752 PD Controllers
• Input: 33 – 57 V
• 1500 Vrms, one minute isolation from primary and bias to
secondary and drive





Core material Ferrite
Terminations RoHS tin-silver-copper over tin over nickel over phos
bronze. Other terminations available at additional cost.
Weight 11.3 g
Ambient temperature –40°C to +125°C
Storage temperature Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)





Part

number

L at 0 A

±10%

(μH)

L at Ipk

min

(μH)

DCR max (Ohms)

Leakage L

max (μH)

Turns ratio

Ipk

(A)

Output
pri sec bias drive pri : sec pri : bias pri : drive
NA5730-AL_ 62 55.8 0.107 0.004 0.122 0.060 2.0 1 : 0.125 1 : 0.29 1 : 0.125 2.1 5.0 V, 4.5 A
