13 W PoE C1495-AL_ SMPS Flyback Transformer with 6.5g Weight
Description:
• Flyback transformers for 13 W PoE applications
• Designed to operate in continuous mode at 250 kHz with an input of 36 – 72 Vdc
• 1500 Vrms isolation from primary and bias to secondary
Core material Ferrite
Terminations RoHS tin-silver (96.5/3.5) over tin over nickel over phos
bronze. Other terminations available at additional cost.
Weight 6.15 g
Ambient temperature –40°C to +85°C
Storage temperature Component: –40°C to +85°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)
|
Part number |
L at 0 A ±10% (μH) |
L at Ipk min (μH) |
DCR max (Ohms) |
Leakage L max (μH) |
Turns ratio |
Ipk (A) |
Output | |||
| pri | bias | sec | pri : sec | pri : bias | ||||||
| C1495-AL_ | 127 | 114.3 | 0.255 | 0.310 | 0.024 | 1.25 | 1 : 0.166 | 1 : 0.50 | 1.0 | 3.3 V, 4.0 A |
| C1585-AL_ | 127 | 114.3 | 0.222 | 0.348 | 0.039 | 0.950 | 1 : 0.25 | 1 : 0.50 | 1.0 | 5.0 V, 2.6 A |
| C1586-AL_ | 127 | 114.3 | 0.199 | 0.308 | 0.129 | 0.650 | 1 : 0.50 | 1 : 0.50 | 1.0 | 12 V, 1.08 A |
13 W PoE C1495-AL_ SMPS Flyback Transformer with 6.5g Weight
Shape and Dimensions:

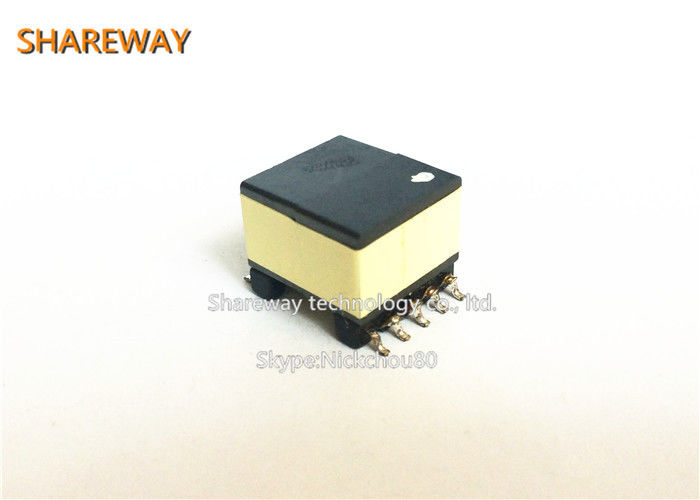

Product picture:
