Product Name: |

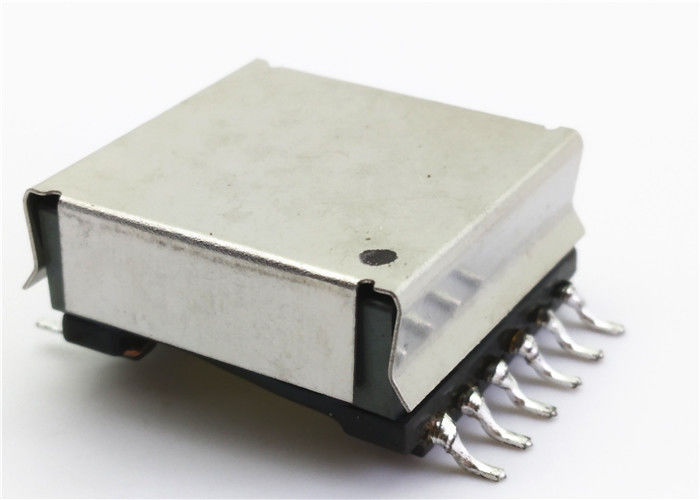

26.75*32.65*13.6mm HP6-2400L / HPH6-2400L Transformer With A Metal Cover |
Size: |
26.75*32.65*13.6mm |
Inductance: |
86.4 ±25% |
DCR: |
0.020 Ohms |
Weight: |
22.4 – 24.3 G |
Pin: |
6+6 |
Product Name: |
26.75*32.65*13.6mm HP6-2400L / HPH6-2400L Transformer With A Metal Cover |
Size: |
26.75*32.65*13.6mm |
Inductance: |
86.4 ±25% |
DCR: |
0.020 Ohms |
Weight: |
22.4 – 24.3 G |
Pin: |
6+6 |
26.75*32.65*13.6mm HP6-2400L / HPH6-2400L Transformer with a metal cover
Description:
Core material Ferrite
Terminations RoHS tin-silver over tin over nickel
over phos bronze. Other terminations available at
additional cost.
Ambient temperature –40°C to +85°C with Irms
current.
Maximum part temperature +125°C
Storage temperature Component: –40°C to +125°C.
Packaging: –40°C to +80°C
Resistance to soldering heat Max three
40 second reflows at +260°C, parts cooled to room
temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited
floor life at <30°C / 85% relative humidity)
|
Part number |
Inductance (μH) |
DCR max (Ohms) |
Volt-time product (V-μsec) |
Peak energy storage (μJ) |
Isat (A) |
Irms (A) |
| HP6-2400L | 86.4 ±25% | 0.020 | 87.9 | Note 8 | Note 8 | 3.50 |
| HP6-0325L | 11.7 ±20% | 0.020 | 87.9 | 332 | 1.50 | 3.50 |
| HP6-0158L | 5.69 ±15% | 0.020 | 87.9 | 981 | 3.70 | 3.50 |
| HP6-0121L | 4.36 ±10% | 0.020 | 87.9 | 1485 | 5.20 | 3.50 |
| HP6-0090L | 3.24 ±5% | 0.020 | 87.9 | 1833 | 6.70 | 3.50 |
| HPH6-2400L | 194 ±25% | 0.030 | 131.9 | Note 8 | Note 8 | 2.90 |
| HPH6-0325L | 26.3 ±20% | 0.030 | 131.9 | 477 | 1.20 | 2.90 |
| HPH6-0158L | 12.8 ±15% | 0.030 | 131.9 | 1176 | 2.70 | 2.90 |
| HPH6-0121L | 9.8 ±10% | 0.030 | 131.9 | 1783 | 3.80 | 2.90 |
| HPH6-0090L | 7.29 ±5% | 0.030 | 131.9 | 1944 | 4.60 | 2.90 |
1944
26.75*32.65*13.6mm HP6-2400L / HPH6-2400L Transformer with a metal cover
Shape and Dimensions:
