Product Name: |
0.83 To 0.83 A Push-pull Transformer HP2-1600L_ / HPH2-1600L_ |
Type: |
Push-pull Transformer |
Pin: |
6+6 |
Weight: |
2.7 – 2.8 G |
Size: |
12.9*16.3*7.4mm |
Inductance: |
78.4 ±25% |
Product Name: |
0.83 To 0.83 A Push-pull Transformer HP2-1600L_ / HPH2-1600L_ |
Type: |
Push-pull Transformer |
Pin: |
6+6 |
Weight: |
2.7 – 2.8 G |
Size: |
12.9*16.3*7.4mm |
Inductance: |
78.4 ±25% |

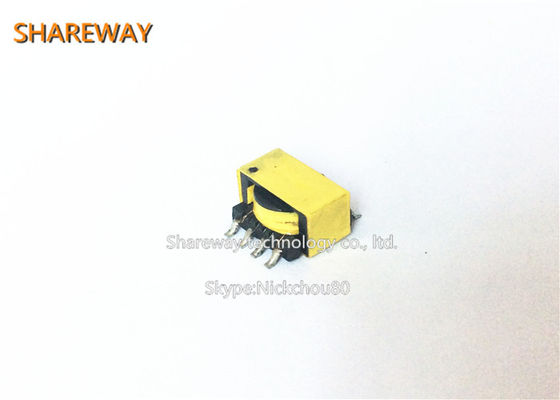

0.83 to 0.83 A push-pull Transformer HP2-1600L_ / HPH2-1600L_
Description:
These off-the shelf parts can be used
to create thousands of configurations,
providing a convenient method for
designers to create custom magnetics.
By connecting the windings in series
or parallel, the Hexa-Path components
can be configured as inductors,
coupled inductors and transformers for
use in virtually any application: flyback,
buck/boost, push-pull, forward, full and
half bridge, Cuk, and SEPIC.
|
Part number |
Inductance (μH) |
DCR max (Ohms) |
Volt-time product (V-μsec) |
Peak energy storage (μJ) |
Isat (A) |
Irms (A) |
| HP2-1600L_ | 78.4 ±25% | 0.085 | 30.8 | Note 8 | Note 8 | 1.13 |
| HP2-0216L_ | 10.6 ±20% | 0.085 | 30.8 | 79.2 | 0.770 | 1.13 |
| HP2-0116L_ | 5.7 ±15% | 0.085 | 30.8 | 184 | 1.60 | 1.13 |
| HP2-0083L_ | 4.1 ±10% | 0.085 | 30.8 | 228 | 2.10 | 1.13 |
| HP2-0066L_ | 3.2 ±5% | 0.085 | 30.8 | 252 | 2.50 | 1.13 |
| HPH2-1600L_ | 160 ±25% | 0.155 | 44.0 | Note 8 | Note 8 | 0.83 |
| HPH2-0216L_ | 21.6 ±20% | 0.155 | 44.0 | 82.3 | 0.550 | 0.83 |
| HPH2-0116L_ | 11.6 ±15% | 0.155 | 44.0 | 177 | 1.10 | 0.83 |
| HPH2-0083L_ | 8.3 ±10% | 0.155 | 44.0 | 302 | 1.70 | 0.83 |
| HPH2-0066L_ | 6.6 ±5% | 0.155 | 44.0 | 333 | 2.00 | 0.83 |
0.83 to 0.83 A push-pull Transformer HP2-1600L_ / HPH2-1600L_
Shape and Dimensions:
