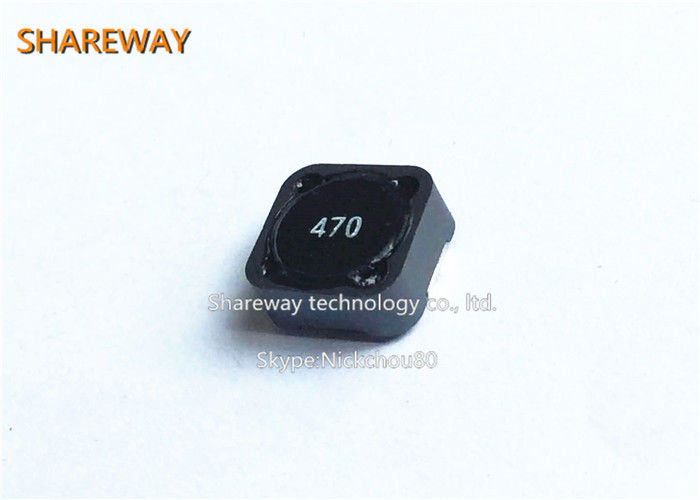

1.0μH - 1mH 491R0SC Surface Mount Inductor For Switching Power Supply

1.0μH - 1mH 491R0SC Surface Mount Inductor For Switching Power Supply
1.0μH - 1mH 491R0SC Surface Mount Inductor For Switching Power Supply

Large Image :  1.0μH - 1mH 491R0SC Surface Mount Inductor For Switching Power Supply

Product Details:

Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: 491R0SC

Payment & Shipping Terms:

Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 3000K.PCS/Month
Detailed Product Description
Product Name: 1.0μH To 1mH 491R0SC Surface-mount Inductors For Switching Power Supply Shield: Integral EMI Shield
Size: 12.2*12.2*8mm Usage: Reduce EMI.
Inductance: 1.0μH To 1mH Sample: Free
High Light:

small flyback transformer

,

high frequency transformer

1.0μH to 1mH 491R0SC surface-mount inductors for switching power supply


FEATURES:

  •  RoHS compliant
  •  1.0μH to 1mH
  • Up to 11.8A IDC
  •  Bobbin format
  •  Surface mount
  •  Integral EMI shield
  •  Compact size
  •  Tape and reel packaging
  •  UL 94V-0 materials
  •  J-STD-020-C reflow



DESCRIPTION:
The 4900S series is a range of bobbin-wound,
surface-mount inductors designed for use in
switching power supply, and power line filter
circuits. The parts are suitable for any application
requiring a high saturation current in a low-profile
package. The devices have an integral ferrite
shield to reduce EMI.





Order Code Inductance
(10kHz, 100mVAC)
±20%
DC Current DC Resistance SRF Q Factor
Nom. Max. Max. Typ. Typ.
μH A MHz Q @ f (MHz)
491R0SC 1.0 (±30%) 11.8 5 91 32 1
492R2SC 2.2 (±30%) 9.8 8 48 45 1
493R3SC 3.3 (±30%) 8.4 10 37 42 1
494R7SC 4.7 (±30%) 7.7 12 32 42 1
496R8SC 6.8 (±30%) 6.2 16 24 43 1
49100SC 10 5.1 21 19 43 1
49150SC 15 4.4 27 16 44 1
49220SC 22 3.1 42 12 46 1
49330SC 33 2.9 60 10 51 1
49470SC 47 2.3 100 9 52 1
49680SC 68 2.0 143 7 47 1
49101SC 100 1.6 165 6 40 0.8
49151SC 150 1.3 250 5 35 0.8
49221SC 220 1.1 380 4 36 0.8
49331SC 330 0.90 550 4 33 0.8
49471SC 470 0.75 810 4 37 0.8
49681SC 680 0.62 1200 3 27 0.8
49102SC 1000 0.50 1500 3 26 0.8





1.0μH to 1mH 491R0SC surface-mount inductors for switching power supply


Shape and Dimensions:

1.0μH - 1mH 491R0SC Surface Mount Inductor For Switching Power Supply 0
