Product Details
Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,ISO9001-2001

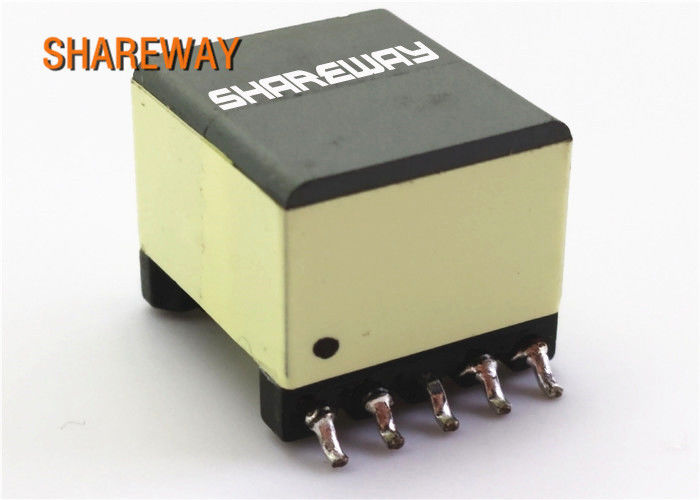

Model Number: SA2421NL
Payment & Shipping Terms
Minimum Order Quantity: 500/1000
Price: 0.62US$~0.88US$
Packaging Details: Reel/Tray
Delivery Time: Stock Or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 200K pcs/month
Trader PN#: |
PA3855.006NL |
Shareway PN#: |
SA2421NL |
Application: |
DC-DC Converter /LCD TV /Notebook /PDA /Digital Camera |
Coil Structure: |
EE Transformer,Customized,Other |
Material: |
Copper,Mn-Zn Ferrite Core,Ferrite Core +Bobbin |
Size: |
EP10,EP13 |
Trader PN#: |
PA3855.006NL |
Shareway PN#: |
SA2421NL |
Application: |
DC-DC Converter /LCD TV /Notebook /PDA /Digital Camera |
Coil Structure: |
EE Transformer,Customized,Other |
Material: |
Copper,Mn-Zn Ferrite Core,Ferrite Core +Bobbin |
Size: |
EP10,EP13 |
| Part Status | Under producing / Active |
| Transformer Type | Flyback Transformer |
| Maximum Input Voltage | 57V |
| Maximum Output Voltage | 12V/12V |
| Maximum DCR Pri (Ohm) | 0.0294 |
| Maximum DCR Sec (Ohm) | 0.054 |
| Maximum Operating Frequency (kHz) | 200 |
| Power Rating | 70W |
| Lead Style | Gull Wing |
| Mounting | Surface Mount |
| Number of Terminals | 10 |
| Minimum Operating Temperature | -40℃ |
| Maximum Operating Temperature | +130℃ |
| Package Type | EP13 |
| Product Length | 14.5mm |
| Product Depth | 17.65mm |
| Product Height | 14mm |
Why us?
Working with worldwide TOP brand customers including Honeywell, Jabil, NorthBound Networks, with fast lead time and high quality,
we always make our customers happy, you could be the next one :).
Shareway is the preferred supplier of Honeywell.
Shareway ST0531NL is used in Security Alarm Honeywell.
Jabil is the OEM for this project.
Shareway is the preferred supplier of NorthBound Networks.
Shareway SRJ2113ABNL is used in ZODIAC FX OpenFlow switch NorthBound Networks.
NorthBound Networks is the OEM for this project.
Q: Can I have samples for testing quality?
A: Yes, you can buy some samples of any of our products for testing quality and market
Q: What is the delivery time if we place an order?
A: it depends on order quantities. Usually, we can deliver goods within 3-5 working days for small orders, for bigger quantity, let’s confirm when you place official order.
Q: Do you accept OEM/ODM?
A: We Support OEM/ODM Service, we turn your idea into reality.
Q: Can I have my own logo on the products?
Yes, you can put your logo on the products with a required order quantity. Please just send us the information about your Logo.
Q: Do your products meet CE/ROHS requirements?
Yes, the goods with CE/ROHS certification approved to make sure high quality.
As a manufacturer, we can ensure the delivery time according to the formal contract.
The effective purchasing and production departments enable us to deliver the goods on time and we are able to provide amazing service after selling. What we provide is high-level products with high-level service. Let's talk more in detail to make it happen.
