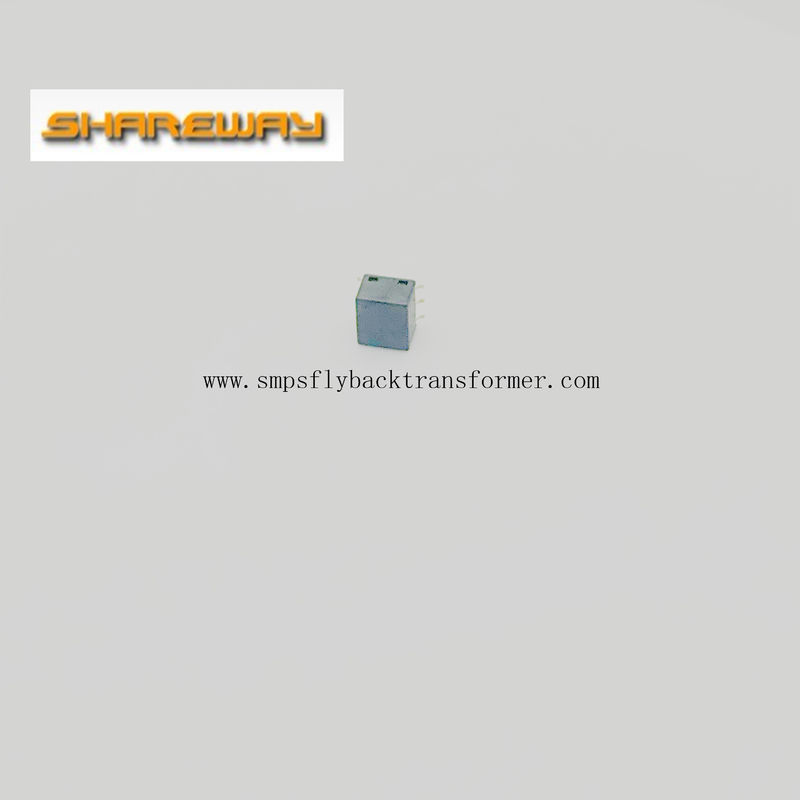

750110056 is a pin-to-pin alternative to the ST0056NL Surface Mount Date/Voice coupling pulse Transformer, Designed for Full/Half-bridge 5KV isolation smart grid, e-metering application

Characteristics:

• Designed for use with Maxim 71M654x family of energy metering ICs
• Provides isolation between remote sensor interface ICs (71M6xxx) and energy metering ICs (71M654x)
• High DC isolation
• Operating temperature:-40 ℃~+85℃
• Switching Frequency: 250 kHz-1 MHz
• 6 Pin SMD Package
• Available in core materials resistant to exposure to a 1300mT rare earth magnet

Applications detail:

• Smart grid
• e-Metering
• Energy monitoring
• Analog isolation

Dimensions:

Schematic:

Application:
