Product Details
Place of Origin: China
Brand Name: Shareway
Certification: RoHS,CE,Reach,AEC-Q200
Model Number: ST4618NL = HCTSM80305BAL
Payment & Shipping Terms
Minimum Order Quantity: 500/1000
Price: Negotiation
Packaging Details: Tape& Reel/Tray/ Tube
Delivery Time: Stock Or 3~6 weeks
Payment Terms: TT,Paypal,West Union, Western Union
Supply Ability: 100k-pcs/month
Name: |

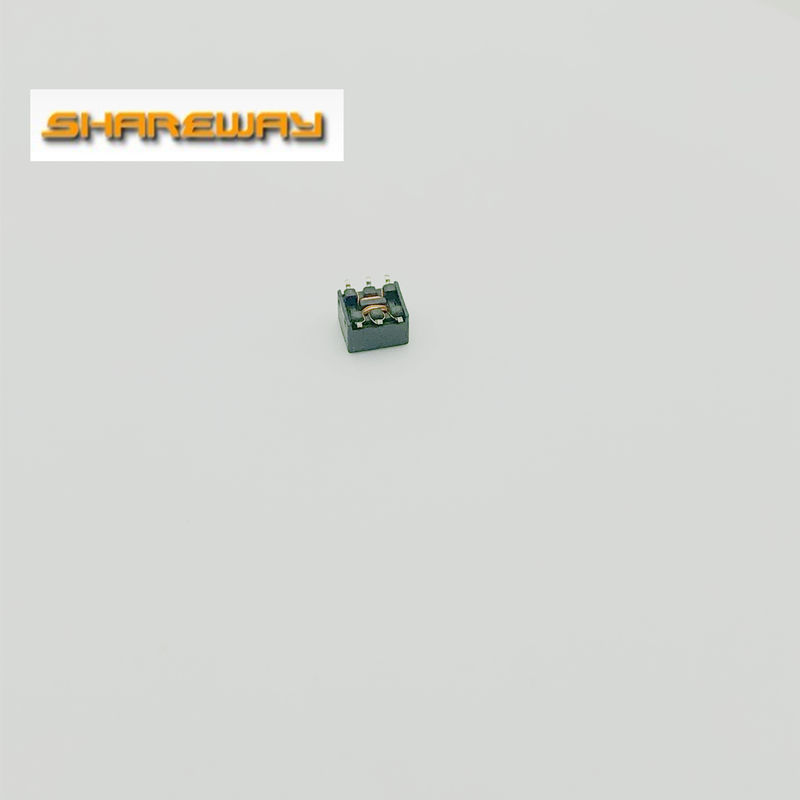

ST4618NL = HCTSM80305BAL 5KV Isolation Transformers For SN6501 SN6505B |
Category: |
Isolation Transformers |
Weight: |
35~75 Mg |
Geometryl: |
Toroidal |
Amblent Temperature: |
-40℃~+85℃ |
For Chipset: |
SN6501 SN6505N |
High Isolation: |
Yes, Reach To 5KV |
RoHS Compliant: |
Yes |
Name: |
ST4618NL = HCTSM80305BAL 5KV Isolation Transformers For SN6501 SN6505B |
Category: |
Isolation Transformers |
Weight: |
35~75 Mg |
Geometryl: |
Toroidal |
Amblent Temperature: |
-40℃~+85℃ |
For Chipset: |
SN6501 SN6505N |
High Isolation: |
Yes, Reach To 5KV |
RoHS Compliant: |
Yes |
Features of the ST4618NL = HCTSM80305BAL Transformer:
Electrical Specifications:
| Part Number | Trader Part Number | Primary Inductance @100 kHz ; L 1-3 uH Min | Leakage Inductance @ 100kHz 0.1V (with all secondary pins shorted) ; Lk 1-3 uH Max | Turn Ratio (1-3):(6-4) | Primary DCR ohm Max | Secondary DCR ohm Max |
| ST4618NL | HCTSM80305BAL | 250 | 0.8 | 1:1 | 0.30 | 0.20 |
Dimensions of ST4618NL trafo :
Designed for isolation power supplies using Texas Instruments SN6501 and SN6505B
RF Wideband transformer:
Why us?
Working with worldwide TOP brand customers including Honeywell, Jabil, NorthBound Networks, with fast lead time and high quality,
we always make our customers happy, you could be the next one :).
Shareway is the preferred supplier of Honeywell.
Shareway ST0531NL is used in Security Alarm Honeywell.
Jabil is the OEM for this project.
Shareway is the preferred supplier of NorthBound Networks.
Shareway SRJ2113ABNL is used in ZODIAC FX OpenFlow switch NorthBound Networks.
NorthBound Networks is the OEM for this project.
Q: Can I have samples for testing quality?
A: Yes, you can buy some samples of any of our products for testing quality and market.
Q: What is the delivery time if we place an order?
A: 1~2 weeks for small orders, 4~6 weeks for big orders.
Q: Can I have my own logo on the products?
Yes, you can put your logo on the products with a required order quantity. Please just send us the information about your Logo.
Q: Do your products meet CE/ROHS requirements?
Yes, the product with CE/ROHS certification.
