PA0173NL PA0184NL SMT Gate Drive Transformers 1500VDC Basic Functional Insulation

I have had excellent support from Nick Chou at Shareway. We purchased some parts from him and he delivered the products on time and without incident.

—— Phil Hale -- CEO of PSwitches

I have worked with Nick Chou at Shareway for more than 5 years. The most impressive thing is you can always get quick response from him .

—— David Rosero -- CEO of Isolution Service Center

Hi, I am more than happy to confirm your quality is great and your overall business handle is top notch. You have always been an excellent and very accommodating company to us. If you need me to speak directly to them I am more than happy to do so.

—— Paul Harris-- CEO of AuroraMultimedia

I'm Online Chat Now

PA0173NL PA0184NL SMT Gate Drive Transformers 1500VDC Basic Functional Insulation

PA0173NL PA0184NL SMT Gate Drive Transformers 1500VDC Basic Functional Insulation
PA0173NL PA0184NL SMT Gate Drive Transformers 1500VDC Basic Functional Insulation

Large Image :  PA0173NL PA0184NL SMT Gate Drive Transformers 1500VDC Basic Functional Insulation

Product Details:

Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,CE,Reach
Model Number: PA0184NL, PA0173NL

Payment & Shipping Terms:

Minimum Order Quantity: 500/1000
Price: 0.42US$~0.988US$
Packaging Details: Reel/Tray/ Tube
Delivery Time: Stock Or 3~6 weeks
Payment Terms: TT,Paypal,West Union, Western Union
Supply Ability: 100k-pcs/month
Detailed Product Description
Name: PA0173NL, PA0184NL SMT Gate Drive Transformers With 1500VDC Basic And Functional Insulation Category: Gate Drive Transformers
Geometryl: Toroidal Amblent Temperature: -40℃~+85℃
Low Profile: Yes RoHS Compliant: Yes
High Light:

1500VDC Gate Drive Transformer

,

Basic Insulation SMT Gate Drive Transformer

,

PA0184NL Gate Drive Transformers

PA0173NL, PA0184NL SMT Gate Drive Transformers with 1500VDC Basic and functional insulation


What is SMT Gate Drive Transformer?

A gate drive transformer is a kind of transformer designed to use to driving a MOSFET gate, it isolates the controlling gate drive circuit from the switch node when driving the MOSFET gate, and may also scale the output voltage through an appropriate pri-to-sec turns ratio.


Features of the PA0173NL, PA0184NL SMT Gate Drive transformers:


  1.  >1500V DC isolation ( 380Vrms continuous)
  2. Basic insulation ( 1.4mm creepage/ clearance) and functional available
  3. Operating frequency:  50KHz and up
  4. RoHS compliant product
  5. Surface mount type easily for auto machine pick and place



Specifications of the PA0173NL, PA0184NL SMT Gate Drive Transformers:


Part Number Trader Part Number Turns Ratio Pri-Sec Isolation Max V usec Pri Inductance ( uH Min) Lk (uH Max) DCR Pri (ohm Max) DRC Sec (ohm Max) Dimension (L*W*H) (mm Max)
SA68386NL PE-68386NL 1:1 1500 VDC 9.7 785 0.46 0.60 0.60 8.6*6.7*2.5
SA0926NL P0926NL 1:1:1 1500 VDC 23.8 300 0.50 2.00 2.00 8.0*6.6*5.3
SA0544NL P0544NL 1:1:1 1500VDC 45.1 3300 0.80 1.25 1.25 9.0*8.6*7.6
SA0264NL PA0264NL 1:1:1 1000V rms 12.7 1140 0.65 0.75 0.75 8.6*6.7*3.6
SA1323NL PA1323NL 1:1 1500Vrms 21.7 600 2.0 1.25 1.25 9.5*7.1*5.3
SA0173NL PA0173NL 1:1:1 1500Vrms 17.2 980 0.75 0.62 0.88 11.8*8.8*4.0
SA0185NL PA0185NL 1:1 1500Vrms 17.2 980 0.75 0.88 0.62 11.8*8.8*4.0
SA0184NL PA0184NL 1:1 1500Vrms 27.2 1200 0.50 0.91 0.46 9.0*8.6*7.6
SA0297NL PA0297NL 2:1:1 1500Vrms 27.2 1200 0.60 0.91 0.46 9.0*8.6*7.6
SA2777NL PA2777NL 1:1 1500Vrms 9.3 335.2 0.36 0.70 0.70 7.1*6.1*5.5
SA0510NL PA0510NL 2.5:1:1 1500Vrms 27.2 1200 0.68 0.91 0.380 9.0*8.6*7.6
SA3493NL PA3493NL 1.25:1 1650Vrms 23 656 1.3 1.03 0.85 10.9*9.7*2.7

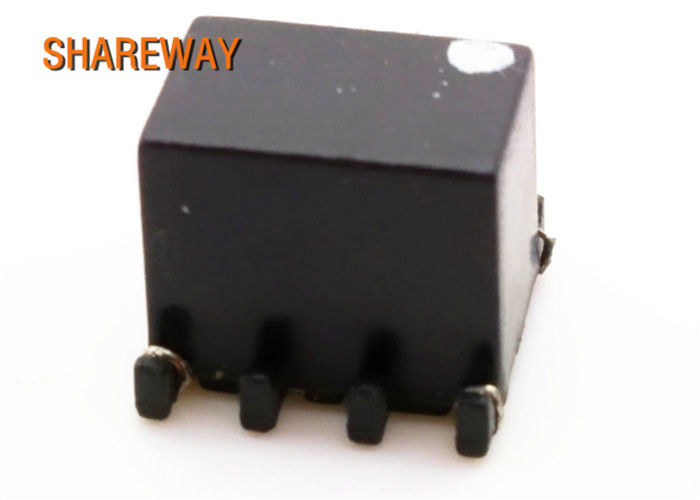

Real Product photo:

PA0173NL PA0184NL SMT Gate Drive Transformers 1500VDC Basic Functional Insulation 0



Dimensions:




Schematic:



PA0173NL PA0184NL SMT Gate Drive Transformers 1500VDC Basic Functional Insulation 1
PA0173NL PA0184NL SMT Gate Drive Transformers 1500VDC Basic Functional Insulation 2
PA0173NL PA0184NL SMT Gate Drive Transformers 1500VDC Basic Functional Insulation 3
