Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: SEP0601=B78416A2360A003
Payment & Shipping Terms
Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: 420 pcs/reel or TBD
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 300K.PCS/Month
Product Name: |

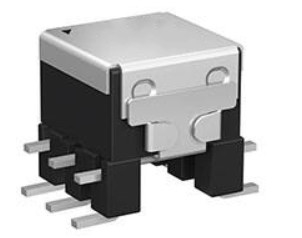

SMT Transformer For Ultrasonic Sensors EP 6 Electronic Transformer SEP0601= B78416A2360A003 |
Coating: |
Metal |
Core Structure: |
Ferrite Core EP6 |
Application: |
Ultrasonic Park Assist, Industrial Distance Measuring |
Core Color: |
Black |
Mounting Type: |
SMD |
Inductance: |
3.0 MH |
Product Name: |
SMT Transformer For Ultrasonic Sensors EP 6 Electronic Transformer SEP0601= B78416A2360A003 |
Coating: |
Metal |
Core Structure: |
Ferrite Core EP6 |
Application: |
Ultrasonic Park Assist, Industrial Distance Measuring |
Core Color: |
Black |
Mounting Type: |
SMD |
Inductance: |
3.0 MH |
Construction of the SEP0601= B78416A2360A003 Ultrasonic Sensors transformer
Features of the SEP0601= B78416A2360A003 Ultrasonic Sensors transformer
Typical application of the SEP0601= B78416A2360A003 Ultrasonic Sensors transformer
Characteristics and ordering codes
| Trader PN# | Our PN# | LR (mH) | Turns ratio | Operating frequency | DCR Rdc N2 / Rdc N1a,b | Hi-Pot |
| B78416A2360A003 | SEP0601 | 3.0 ±10% | N1a : N1b : N2 =1:1:8.42 | 52kHz | 23.0 ohm /0.5 ohm each | 100VAC, 1s |
Shape and Dimensions:
Schematic:
