Product Details
Place of Origin: Guangdong,China
Brand Name: Shareway
Certification: RoHS,CE,Reach,AEC-Q200
Model Number: ST4619NL = HCTSM80101AAL
Payment & Shipping Terms
Minimum Order Quantity: 500/1000
Price: Negotion
Packaging Details: Tape& Reel/Tray/ Tube
Delivery Time: Stock Or 3~6 weeks
Payment Terms: TT,Paypal,West Union, Western Union
Supply Ability: 100k-pcs/month
Product Name: |

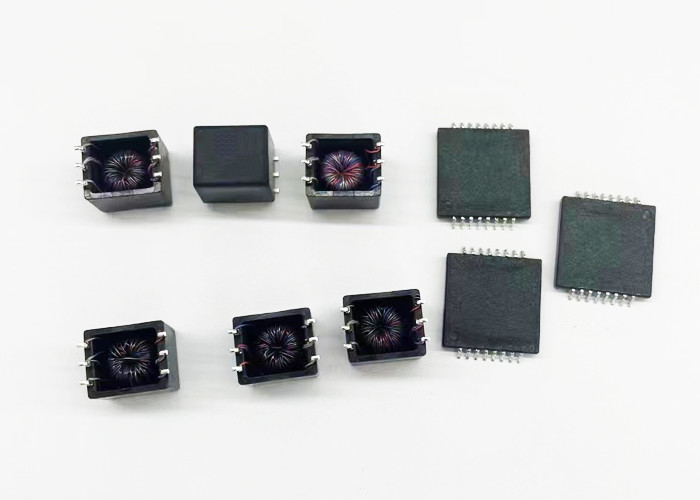

ST4619NL = HCTSM80101AAL Gate Drive Transformer High For SN6501 SN6505B |
Category: |
Isolation Transformers |
Amblent Temperature: |
-40℃~+85℃ |
For Chipset: |
SN6501 SN6505B |
Low Profile: |
Yes |
RoHS Compliant: |
Yes |
Product Name: |
ST4619NL = HCTSM80101AAL Gate Drive Transformer High For SN6501 SN6505B |
Category: |
Isolation Transformers |
Amblent Temperature: |
-40℃~+85℃ |
For Chipset: |
SN6501 SN6505B |
Low Profile: |
Yes |
RoHS Compliant: |
Yes |
Features of the HCT Series Transformer:
Electrical Specifications:
| Part Number | Trader Part Number | Primary Inductance @100 kHz ; L 1-3 uH Min | Leakage Inductance @ 100kHz 0.1V (with all secondary pins shorted) ; Lk 1-3 uH Max | Turn Ratio (1-3):(6-4) | Primary DCR ohm Max | Secondary DCR ohm Max |
| ST4618NL | HCTSM80101AAL | 250 | 0.8 | 1:1 | 0.30 | 0.20 |
| ST4619NL | HCTSM80102AAL | 250 | 0.6 | 1:2 | 0.30 | 0.35 |
| ST4620NL | HCTSM80201AAL | 250 | 1.2 | 2:1 | 0.30 | 0.15 |
| ST4621NL | HCTSM80304BAL | 300 | 0.6 | 3:4 | 0.30 | 0.30 |
| ST4622NL | HCTSM80305BAL | 300 | 0.6 | 3:5 | 0.30 | 0.30 |
| ST4623NL | HCTSM80308BAL | 300 | 0.7 | 3:8 | 0.50 | 0.85 |
| ST4624NL | HCTSM80403AAL | 250 | 0.8 | 4:3 | 0.30 | 0.20 |
| ST4625NL | HCTSM80803AAL | 250 | 1.8 | 8:3 | 0.30 | 0.15 |
| ST4626NL | HCTSM80809AAL | 250 | 0.6 | 8:9 | 0.30 | 0.25 |
| ST4627NL | HCTSM80910BAL | 300 | 0.9 | 9:10 | 0.30 | 0.25 |
| ST4628NL | HCTSM81017CAL | 350 | 0.9 | 10:17 | 0.42 | 0.48 |
Dimensions of ST46xxNL series :
Designed for isolation power supplies using Texas Instruments SN6501 and SN6505B
