Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: B82806D0060A050 B82806D0060A033
Payment & Shipping Terms
Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: Tape&Reel/ Bulk
Delivery Time: Stock or 3~5 weeks
Payment Terms: TT,Paypal, Western Union
Supply Ability: 3000K.PCS/Month
Product Name: |
B82806D0060A050 B82806D0060A033 PoE Transformer 60W SMD 6+6 60W Output |
Type: |
Flyback Transformer |
Application: |
PoE, Active Clamp Forward Converter |
Suitable For: |
Switch-mode Power Supplies |
Terminations: |
Tin-silver Over Copper |
Characteristics 3: |
Surface Mount Technology |
Characteristics 4: |
Wide Range Of Filtering Spectrum |
Product Name: |
B82806D0060A050 B82806D0060A033 PoE Transformer 60W SMD 6+6 60W Output |
Type: |
Flyback Transformer |
Application: |
PoE, Active Clamp Forward Converter |
Suitable For: |
Switch-mode Power Supplies |
Terminations: |
Tin-silver Over Copper |
Characteristics 3: |
Surface Mount Technology |
Characteristics 4: |
Wide Range Of Filtering Spectrum |

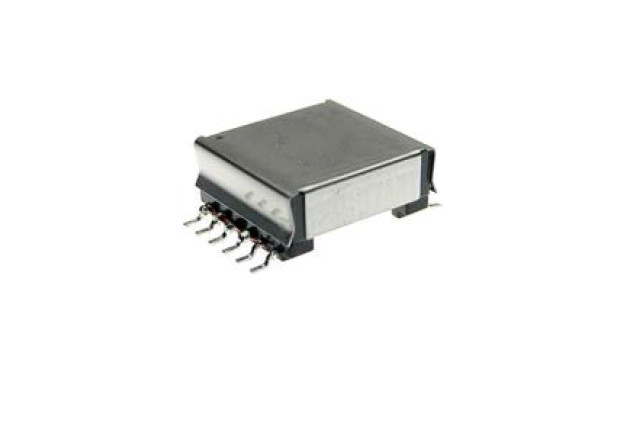

Construction of B82806D0060A050 B82806D0060A033 PoE Transformer 60W SMD 6+6 60W output
EFD20 Ferrite Core
SMD Type for easily for machine assembly
Gullwing terminals
Features of B82806D0060A050 B82806D0060A033 PoE Transformer 60W SMD 6+6 60W output
Typical Applications for the B82806D0060A050 B82806D0060A033 PoE Transformer 60W SMD 6+6 60W output
Dimensions of the B82806D0060A050 B82806D0060A033 PoE Transformer 60W SMD 6+6 60W output
Circuit diagram of the B82806D0060A050 B82806D0060A033 PoE Transformer 60W SMD 6+6 60W output
Characteristics and part number
| Part Number | Trader Part Number | Inductance (1,2-3,4) | Turns Ratio | Secondary output voltage | Leak inductance | DCR Pri Max | DRC Aux Max | DRC Sec Max |
| uH | Pri : Sec: Aux | V | uH Max | mohm | mohm | mohm | ||
| EFD20-013 | B82806D0060A120 | 100 | 2:1:1 | 12 | 0.18 | 35 | 160 | 8 |
| EFD20-014 | B82806D0060A050 | 100 | 4:1:2.3 | 5 | 0.32 | 35 | 185 | 4.5 |
| EFD20-015 | B82806D0060A033 | 100 | 6:1:3.5 | 3.3 | 0.6 | 35 | 180 | 3.5 |
| EFD20-016 | B82806D0060A240 | 100 | 1:1:0.5 | 24 | 0.25 | 35 | 163 | 35 |
