760801130 High Efficiency PFC Chokes Power Over Ethernet Transformer

Product Details

Place of Origin: Guangdong China

Brand Name: Shareway

Certification: CE UL RoHS ISO9001:2008

Model Number: 760801130

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Price: Supportive

Packaging Details: 500 parts per full reel

Delivery Time: Stock or 3-4 weeks

Payment Terms: TT,Paypal

Supply Ability: 5000K.PCS/Month

Get Best Price
Highlight:

760801130 PFC Chokes

,

High Efficiency PFC Chokes

,

750uH Power Over Ethernet Transformer

Product Name:
760801130 High Efficiency PFC Chokes Power Over Ethernet Transformer
Usage:
For Active Power Factor Correction
Mount:
Through-hole
Product Type::
PFC Chokes
Operating Temperature Range:
-40 Up To +115 °C
Inductance:
750 µH
Package:
Cut Tape /MouseReel/ Reel
Product Name:
760801130 High Efficiency PFC Chokes Power Over Ethernet Transformer
Usage:
For Active Power Factor Correction
Mount:
Through-hole
Product Type::
PFC Chokes
Operating Temperature Range:
-40 Up To +115 °C
Inductance:
750 µH
Package:
Cut Tape /MouseReel/ Reel
760801130 High Efficiency PFC Chokes Power Over Ethernet Transformer

760801130 High efficiency PFC Chokes Power Over Ethernet Transformer​


Characteristics

  1. High efficiency
  2. Good EMC behavior
  3. Height as low as 13.1 mm
  4. Small footprint
  5. Suitable for mains voltage
  6. Isolation voltage of 1.5 kV AC
  7. Operating temperature: -40 °C to 125 °C



Applications

  1. Active power factor correction
  2. Lighting applications
  3. SMPS for 75 W - 250 W



Electrical Properties:

Properties   Test conditions Value Unit Tol
Inductance L N1/ 100 kHz/ 100 mV 750 µH ±10%
Rated Current   N1/ ΔT = 40 K 0.9 A max
Saturation Current I SAT N1/ |ΔL/L| < 20 % 3.9 A typ.
DC Resistance 1 RDC N1/ 20 °C 720 max.
DC Resistance 2 RDC N1/ 20 °C 320 max.
Input Voltage Vin   85 - 265 V (AC)
Turns Ratio n N1 : N2 90:8   ±3%
Output Power 1 PO1   75 W
Insulation Test Voltage VT N1 => N2 1500 V (AC)





Shape and Dimensions:

760801130 High Efficiency PFC Chokes Power Over Ethernet Transformer 0



Product picture:

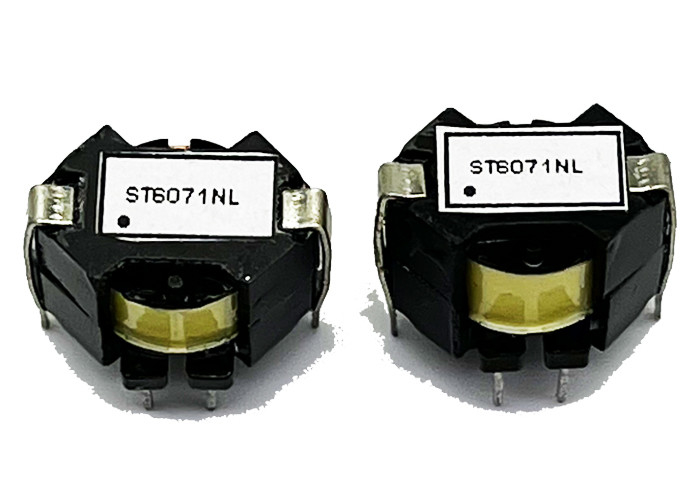

760801130 High Efficiency PFC Chokes Power Over Ethernet Transformer 1



760801130 High efficiency PFC Chokes Power Over Ethernet Transformer​




About us

ShareWay Technology CO., LTD. is a specialized manufacturer of PoE Components, products include PoE transformer, PoE RJ45 Magjack, PoE Lan Transformer, PoE Lan filter, and so on.

Established in 1998, we have around 500 staff at present. With the abundant productive capacity, we are able to deliver the goods within a short time. Moreover, we can provide a professional complete solution for PoE applications. Our products are widely used in networking and communication equipment such as HUB, PC cards, Switch, Route, PC Mainboard, SDH, PDH, and xDSL modems.

Company History
1997 ShareWay Technology CO., LTD. was founded in Shenzhen, Guangdong, China. Start selling the
discrete LAN Transformers, T1/E1 and xDSL Line Transformer.
1999 Established production base in Shenzhen, start producing the PoE Transformers, T1/E1
and xDSL Line Transformer.
2000 Obtained the ISO9000 certification.
2000 Develop PoE RJ45 connector which is with LAN transformers.
2002 Develop SMT and Vertical PoE RJ45 connector with magnetic.

2008 Develop SMT/DIP Power Inductor and Chokes



Contact us now to have a solution for your project and new design, we are always ready to share our successful Way with you.





HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods are finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.
Remarks:
1. Sample orders are available.
2. Price is negotiable for orders of large quantities.
3. Customized orders (OEM/ODM orders) are available.
4. Contact us for the available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs
Our service:
1. 100% tested before shipping
2. Have alternatives for Halo, Pluse, We-online, Chilisin, and Coilcraft......Same quality but better price
3. Free samples available
4. Provide new design for customer
