749196540 Low Leakage Inductance Flexible Transformer For DC / DC Converter

Product Details

Place of Origin: Guangdong China

Brand Name: Shareway

Certification: CE UL RoHS ISO9001:2008

Model Number: 749196540

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Price: Supportive

Packaging Details: 500 parts per full reel

Delivery Time: Stock or 3-4 weeks

Payment Terms: TT,Paypal

Supply Ability: 5000K.PCS/Month

Get Best Price
Highlight:

Low Leakage Inductance Flexible Transformer

,

DC Converter Flexible Transformer

,

3.4 uH SMPS Flyback Transformer

Product Name:
749196540 Low Leakage Inductance FLEX Flexible Transformer For DC/DC Converter
Usage:
For DC/DC Converter
Mount:
Surface Mount
Product Type::
FLEX Flexible Transformer
Operating Temperature Range:
-40 °C Up To +125 °C
Inductance:
3.4 UH
Package:
Cut Tape /MouseReel/ Reel
Product Name:
749196540 Low Leakage Inductance FLEX Flexible Transformer For DC/DC Converter
Usage:
For DC/DC Converter
Mount:
Surface Mount
Product Type::
FLEX Flexible Transformer
Operating Temperature Range:
-40 °C Up To +125 °C
Inductance:
3.4 UH
Package:
Cut Tape /MouseReel/ Reel
749196540 Low Leakage Inductance Flexible Transformer For DC / DC Converter

749196540 Low leakage inductance FLEX Flexible Transformer for DC/DC Converter​


Characteristics

  1. Transformer with 6 identical windings
  2. 4 sizes with 5 different lengths of air gap each
  3. Isolation voltage 500 VDC
  4. Low leakage inductance
  5. Operating temperature: –40 ºC to +125 ºC



Applications
- All kind of switching regulators
- Flyback converters
- Forward converters
- Push-pull converters
- Step-up/step-down converters
- SEPIC converter





Electrical Properties:

Properties   Test conditions Value Unit Tol.
Inductance Base 1) L BASE 10 kHz/ 1 V 3.4 µH ±35%
Turns Ratio n   1:1:1:1:1:1
Rated Current Base 2) I R BASE ΔT = 40 K 1.91 A typ.
Saturation Current Base 3) I SAT BASE |ΔL/L| < 10 % 4.18 A typ.
DC Resistance Base 4) RDC BASE @ 20 °C 30 max
Voltage-µSecond Base 5) ∫Udt Base Unipolar waveform 65.6 µVs max
Leakage Inductance Base L S Base 10 kHz/ 1 V 0.18 µH typ.
Insulation Test Voltage VT 3 mA/ 1 s 500 V (AC)





Shape and Dimensions:

749196540 Low Leakage Inductance Flexible Transformer For DC / DC Converter 0

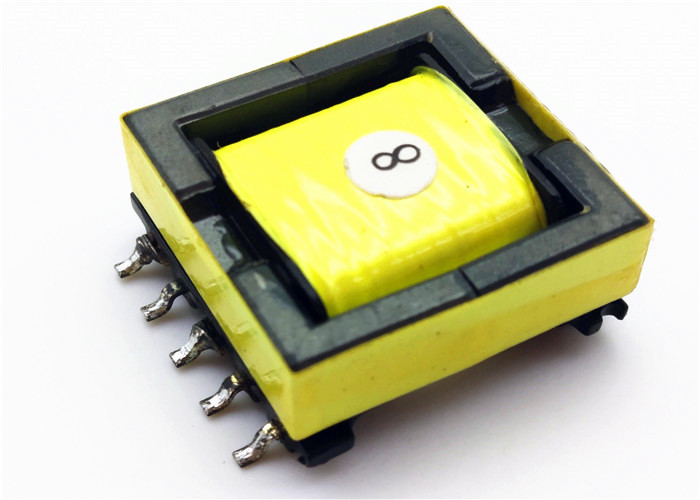

Product picture:

749196540 Low Leakage Inductance Flexible Transformer For DC / DC Converter 1



749196540 Low leakage inductance FLEX Flexible Transformer for DC/DC Converter​
