Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: 74941301
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Price: Supportive
Packaging Details: 500 parts per full reel
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypal
Supply Ability: 5000K.PCS/Month
Product Name: |
74941301 BMS Transformer For Uninterrupted Power Supply (UPS) |
Usage: |
For Uninterrupted Power Supply (UPS) |
Mount: |
Surface Mount |
Product Type:: |
BMS Transformer |
Operating Temperature Range: |
–40 ºC To +125 ºC |
Termination Type: |
Surface Mount |
Inductance: |
450 µH |
Package: |
Cut Tape /MouseReel/ Reel |
Product Name: |
74941301 BMS Transformer For Uninterrupted Power Supply (UPS) |
Usage: |
For Uninterrupted Power Supply (UPS) |
Mount: |
Surface Mount |
Product Type:: |
BMS Transformer |
Operating Temperature Range: |
–40 ºC To +125 ºC |
Termination Type: |
Surface Mount |
Inductance: |
450 µH |
Package: |
Cut Tape /MouseReel/ Reel |
74941301 BMS Transformer For Uninterrupted Power Supply (UPS)
Characteristics
Applications
Electrical Properties:
| Properties | Test conditions | Value | Unit | Tol. | |
| Inductance | L | 100 kHz / 100 mV | 450 | µH | max. |
| Inductance | L | 100 kHz / 100 mV | 150 | µH | min. |
| Insertion Loss | IL | 4 MHz | -0.25 | dB | max. |
| Return Loss | RL | 4 MHz @ 100 Ω | -20 | dB | min. |
| Common Mode Rejection Ratio | CMRR | 1-10 MHz | -35 | dB | min. |
| Common Mode Rejection Ratio | CMRR | 10-1000 MHz | -20 | dB | min. |
| Working Voltage | 1000 | V (DC) | |||
| Insulation Test Voltage | VT 1 | 1 min | 4300 | V (DC) | min. |
| Insulation Test Voltage | VT 2 | 1 min | 3100 | V (AC) | min. |
| Insulation Test Voltage (AC) | VT AC | 1 min | 3100 | V (AC) | min. |
| Insulation Test Voltage (DC) | VT DC | 1 min | 4300 | V (DC) | min. |
| Leakage Inductance | L S | 100 kHz/ 100 mV | 0.5 | µH | max. |
| Insulation Resistance | RISO | 400 | MΩ | min. | |
| Clearance distance | Cl | 6 | mm | min. | |
| Creepage distance | Cr | 6 | mm | min. | |
| DC Resistance 1 1) | RDC | 450 | mΩ | max. | |
| DC Resistance 2 2) | RDC | 850 | mΩ | max. |
74941301 BMS Transformer For Uninterrupted Power Supply (UPS)
Shape and Dimensions:

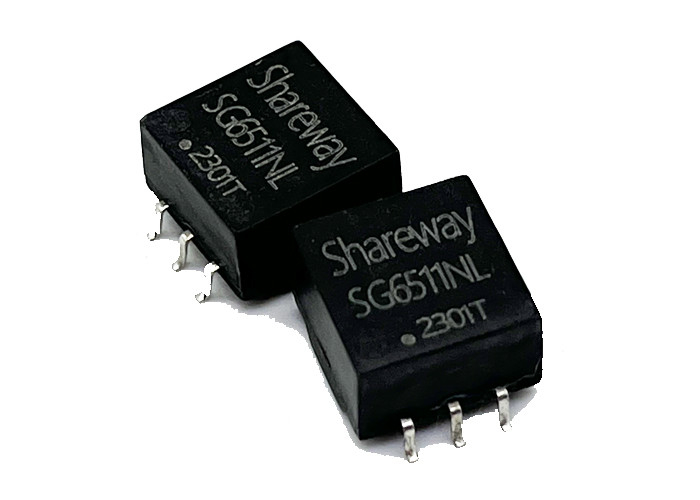

Product picture:
74941301 BMS Transformer For Uninterrupted Power Supply (UPS)
