Product Name: |
749118215 UNIT Off-Line Transformer For Tiny Switch ICs From Power |
Usage: |
For Tiny Switch ICs From Power |
Mount: |
THT |
Product Type:: |
UNIT Off-Line Transformer |
Operating Temperature Range: |
- 40 C To + 125 C |
Termination Type: |
THT |
Inductance: |
0.9 MH |
Package: |
Cut Tape /MouseReel/ Reel |
Product Name: |
749118215 UNIT Off-Line Transformer For Tiny Switch ICs From Power |
Usage: |
For Tiny Switch ICs From Power |
Mount: |
THT |
Product Type:: |
UNIT Off-Line Transformer |
Operating Temperature Range: |
- 40 C To + 125 C |
Termination Type: |
THT |
Inductance: |
0.9 MH |
Package: |
Cut Tape /MouseReel/ Reel |
749118215 UNIT Off-Line Transformer for Tiny Switch ICs from Power
Characteristics
Applications
749118215 UNIT Off-Line Transformer for Tiny Switch ICs from Power
Electrical Properties:
| Properties | Test conditions | Value | Unit | Tol. | |
| Inductance | L | 10 kHz/ 100 mV | 0.9 | mH | ±10% |
| Turns Ratio | n | N1 : N2 : N3 | 19:1:1 | ±3% | |
| Saturation Current | I SAT | N1/ |ΔL/L| < 10 % | 0.85 | A | typ. |
| DC Resistance 1 | RDC 1 | @ 20 °C | 4.3 | Ω | max |
| DC Resistance 2 | RDC 2 | @ 20 °C | 28 | mΩ | max |
| DC Resistance 3 | RDC 3 | @ 20 °C | 28 | mΩ | max |
| Leakage Inductance | L S | 10 kHz/ 100 mV | 120 | µH | max |
| Insulation Test Voltage | VT | N1 => N2,3 | 4000 | V (AC) | |
| Insulation Test Voltage | VT2 | N2 => N3 | 1500 | V (AC) |
Shape and Dimensions:

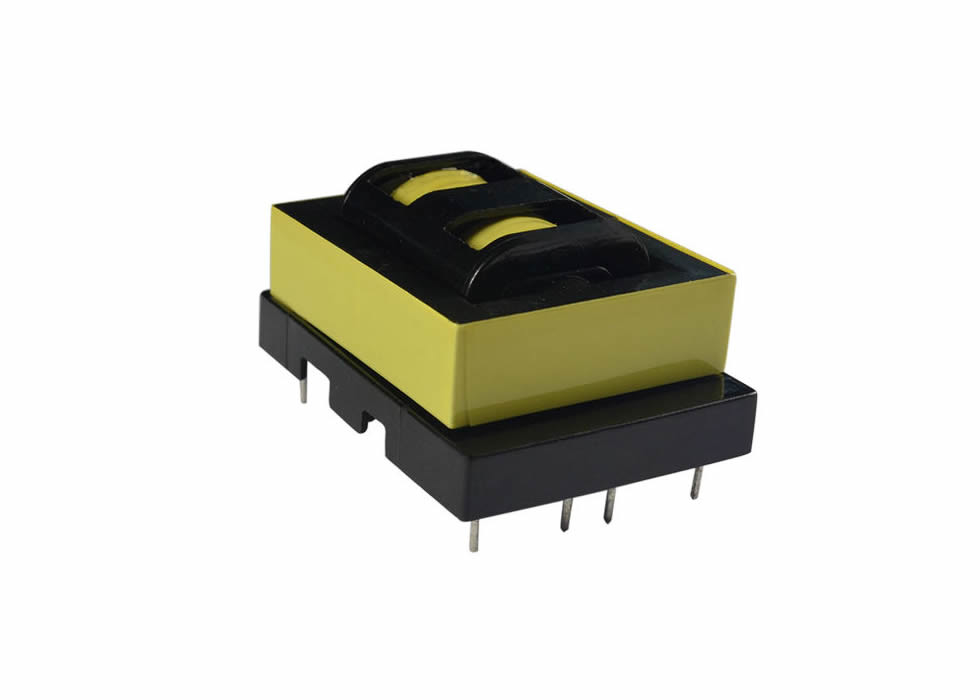

Product picture:
749118215 UNIT Off-Line Transformer for Tiny Switch ICs from Power
