Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: 750315340
Payment & Shipping Terms
Minimum Order Quantity: 100/500/1000
Price: 0.3$~1.2$
Packaging Details: Tube or Tape&Reel Optional
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal, Western Union
Supply Ability: 300K.PCS/Month
Product Name: |
200uH 7+7 Through Hole Transformer With 24V,10A Output For Texas Insturment 750315340 |
Mounting: |
THT/ Through Hole |
Application: |
Power |
Material: |
UL 94 V-0 Package Materials |
Pin: |
4 Pins |
Other Turn Ratios: |
Optional |
Product Name: |
200uH 7+7 Through Hole Transformer With 24V,10A Output For Texas Insturment 750315340 |
Mounting: |
THT/ Through Hole |
Application: |
Power |
Material: |
UL 94 V-0 Package Materials |
Pin: |
4 Pins |
Other Turn Ratios: |
Optional |
DESCRIPTION:
The 750315340 is euqal to Shareway SA395340, it's typically applicated for DC/DC Converters. Designed to work with Texas Instrmuents's UCC28630D, applications include line coupling, and matching for isolating. The devices can also be used in small isolated power supplies and also as common mode chokes in filtering applications.
FEATURES:
| Part number | Trader Part Number | Turns Ratio | Inductance | DCR pri | DCR Sec | Lk | Insulation Test Voltage | Voltage-Time | |
| SA395340 | 750315340 | 9:2:1 | 200μH ±10% | 0.101 Ohm | 0.047 Ohm | 12uH Max @100kHz, 0.1V | 4000 VAC | 60μVs | |

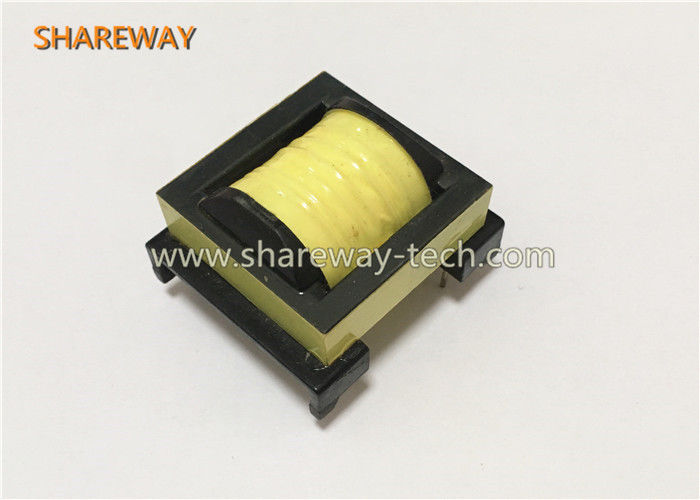

Product Picture:
Application Photo:
