Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: 750344600
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Price: Supportive
Packaging Details: 500 parts per full reel
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypal
Supply Ability: 5000K.PCS/Month
Product Name: |
Surface Mount Low Leakage Inductance Flyback Transformers 750344600 |
Usage: |
For DC/DC Power Supplies |
Mount: |
Surface Mount |
Product Type:: |
FLYTI Flyback Transformers |
Operating Temperature Range: |
-40°C To 125°C |
Inductance: |
35 µH |
Package: |
Cut Tape /MouseReel/ Reel |
Product Name: |
Surface Mount Low Leakage Inductance Flyback Transformers 750344600 |
Usage: |
For DC/DC Power Supplies |
Mount: |
Surface Mount |
Product Type:: |
FLYTI Flyback Transformers |
Operating Temperature Range: |
-40°C To 125°C |
Inductance: |
35 µH |
Package: |
Cut Tape /MouseReel/ Reel |
Surface Mount Low leakage inductance Flyback Transformers 750344600
Characteristics
Applications
ELECTRICAL SPECIFICATIONS @ 25C unless otherwise noted:
|
PARAMETER |
TEST CONDITIONS |
VALUE |
|
D.C. RESISTANCE 1-3 |
@20℃ |
0.15 ohms max |
|
D.C.RESISTANCE 6-5 |
@20℃ |
0.24 ohms max |
|
D.C. RESISTANCE 5-4 |
@20℃ |
0.10ohms max |
|
INDUCTANCE 1-3 |
350kHz,100mVAC,Ls |
35.00uH ±10% |
|
SATURATION CURRENT 1-3 |
20% rolloff from initial |
1.5 A |
|
LEAKAGE INDUCTANCE 1-3 |
tie(4+5+6), 100kHz,100mVAC, Ls |
0.5uH typ., 1.0uH max. |
|
DIELECTRIC 1-6 |
tie(3+4,5+6), 500VAC,1 second |
|
|
TURNS RATIO |
(1-3):(6-5) |
1:1 |
|
TURNS RATIO |
(1-3):(5-4) |
3:1 |
Shape and Dimensions:

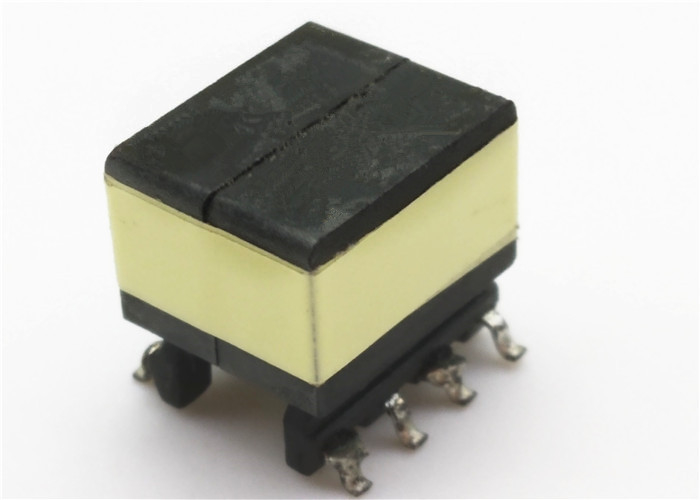

Product picture:
Surface Mount Low leakage inductance Flyback Transformers 750344600
