Product Name: |
HCTSM150102HL High Clearance And Creepage Distance Transformer |
Usage: |
For Isolation Power Supplies |
Mount: |
Surface Mount |
Product Type:: |
Creepage Distance Transformer |
Operating Temperature Range: |
-40 °C Up To +125 °C |
Inductance: |
80 UH |
Package: |
Cut Tape /MouseReel/ Reel |
Product Name: |
HCTSM150102HL High Clearance And Creepage Distance Transformer |
Usage: |
For Isolation Power Supplies |
Mount: |
Surface Mount |
Product Type:: |
Creepage Distance Transformer |
Operating Temperature Range: |
-40 °C Up To +125 °C |
Inductance: |
80 UH |
Package: |
Cut Tape /MouseReel/ Reel |
HCTSM150102HL High Clearance and Creepage Distance Transformer
Features
General Specifications
OCL (100 kHz / 1 V): 80 µH min.
Leakage Inductance (100 kHz/0.1 V):4.0 µH max.
DCR Pin (1-3) : 0.20 Ω max.
Pin (6-4)........................... 0.35 Ω max.
Turns Ratio (Pin (6-4) : Pin (1-3)):2.0 ± 3 %
Rated Current (Parallel input):1 A
Volt Second Product:25 VuS typ.
Partial Discharge Test
based on IEC 60664-1: 2250 Vrms (Ut = 1800 Vrms)
Hi-pot (1 mA, 2 S): 7640 VDC
Working Voltage : up to 1500 VDC
Operating Temperature
.................................-40 ℃ to +125 ℃
(Temperature rise included)
Storage Temperature (Component)
: -40 ℃ to +125 ℃
Clearance/Creepage Distance of
Primary to Secondary:15 mm min.
Level of Insulation
...... Reinforced for the working voltage
of 1500 VDC, Overvoltage Category II,
Pollution Degree 2, Altitude 2000 m
Moisture Sensitivity Level.......................1
ESD Classification (HBM)................. N/A
Shape and Dimensions:

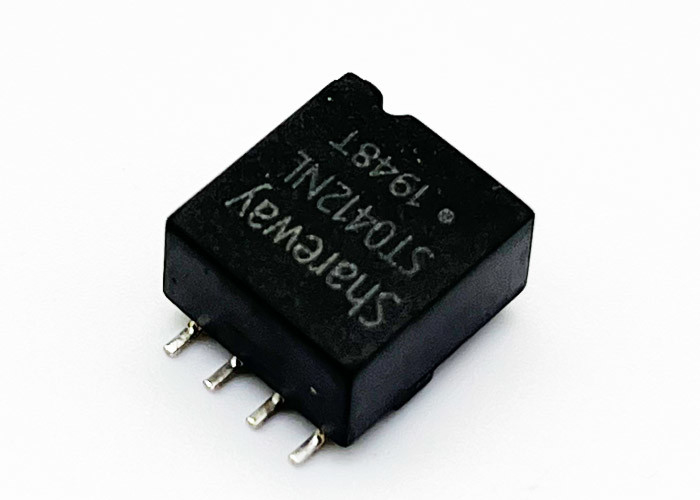

Product picture:
HCTSM150102HL High Clearance and Creepage Distance Transformer
