Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: PA1136NL
Payment & Shipping Terms
Minimum Order Quantity: 500pcs
Price: Supportive
Packaging Details: Tube/ Tape&Reel optional
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypal
Supply Ability: 5000K.PCS/Month
Product Name: |
High Frequency Wire Wound Flyback Transformers EP13 SMT Up To 60W PA1136NL |
Usage: |
For Power Over Ethernet, DC/DC |
Mount: |
Surface Mount |
Product Type:: |
Flyback Transformer |
Operating Temperature Range: |
-40 °C Up To +125 °C |
Inductance: |
126.7 UH ± 10% |
Package: |
Tube Or Taple&Reel |
Product Name: |
High Frequency Wire Wound Flyback Transformers EP13 SMT Up To 60W PA1136NL |
Usage: |
For Power Over Ethernet, DC/DC |
Mount: |
Surface Mount |
Product Type:: |
Flyback Transformer |
Operating Temperature Range: |
-40 °C Up To +125 °C |
Inductance: |
126.7 UH ± 10% |
Package: |
Tube Or Taple&Reel |
Characteristics
Applications
Electrical Properties:
| Properties | Test conditions | Value | Unit | Tol. | |
| Inductance | L | Primary (3-4) | 126.7 | µH | ±10% |
| Turns Ratio | n | Pri: Sec: Aux | 12:1:2.5 | ||
| Saturation Current | ISAT | Sec | 4.1 | A | Typ. |
| DC Resistance 1 | RDC 1 | Primary (3-4) | 0.44 | Ω | Max. |
| DC Resistance 2 | RDC 2 | Sec (8,7-10,9) | 0.006 | Ω | Max. |
| DC Resistance 3 | RDC 3 | Aux (2-1) | 0.088 | Ω | Max. |
| Leakage Inductance | L S | N1/ 100 kHz/ 100 mV | 7.5 | µH | Max. |
| Insulation Test Voltage | VT | N1 => N2,3 | 1500 | V (AC) | |
| Insulation Test Voltage | VT2 | N2 => N3 | 400 | V (DC) |
Shape and Dimensions:

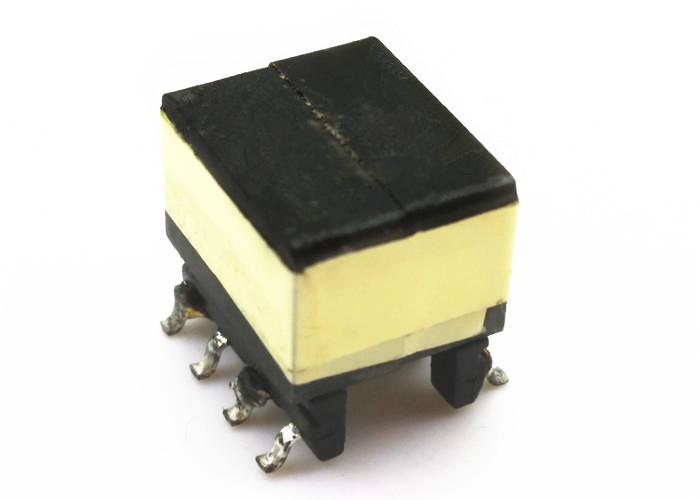

Product picture:
High Frequency Wire Wound Flyback Transformers EP13 SMT Up to 60W PA1136NL
