EFD20 Surface Mount SMPS Flyback Transformer For Power Supply 750032052

EFD20 Surface Mount SMPS Flyback Transformer for power supply 750032052

Characteristics

1. Isolation voltage: 1 kVAC
2. Operating temperature: –40 ºC to +125 ºC (incl. self-heating)
3. Especially designed for LT3751

Applications

1. Transformer for capacitor charger or high voltage outputs

ELECTRICAL SPECIFICATIONS @ 25°C unless otherwise noted:

D.C.RESISTANCE(@20°C):      5-6,0.030 ohms max

                                                   1-10,0.70  ohms max

                                                   4-7,0.030   ohms max

DIELECTRIC RATING:          1000VDC,1 minute tested by applying 1250VDC for 1 second between 1-6(tie 4+5).

500VDC,1 minute tested by applying 625VDC for 1 second between 4-5.

INDUCTANCE         10.0uH±10%,10kHz,100mVAC,5-6(tie 4+5,6+7),Ls.

LEAKAGE INDUCTANCE      0.05uH max.,100kHz,10mAAC,5-6(tie 1+10,4+5,6+7),Ls

TURNS RATIO:       (1-10):(6-5)=10:1,±2%.       (1-10):(7-4)=10:1,±2%.

EFD20 Surface Mount SMPS Flyback Transformer for power supply 750032052

Shape and Dimensions:

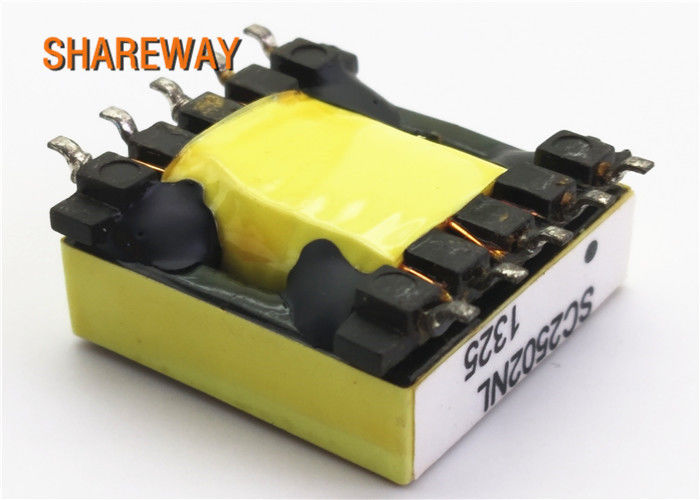

Product picture:

Flyback Transformer for capacitor charger or high voltage outputs 750032051
