SMPS Flyback Transformer with 6 identical windings 749196527

Product Details

Place of Origin: Guangdong China

Brand Name: Shareway

Certification: CE UL RoHS ISO9001:2008

Model Number: 749196527

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Price: Supportive

Packaging Details: 500 parts per full reel

Delivery Time: Stock or 3-4 weeks

Payment Terms: TT,Paypal

Supply Ability: 5000K.PCS/Month

Get Best Price
Highlight:

749196527 SMPS Flyback Transformer

,

6 identical windings SMPS Flyback Transformer

,

749196527

Product Name:
SMPS Flyback Transformer With 6 Identical Windings 749196527
Usage:
For Push-pull Converters
Mount:
Surface Mount
Product Type::
Flyback Transformer
Operating Temperature Range:
-40 °C Up To +125 °C
Inductance:
5.3 µH
Package:
Tape / Reel
Product Name:
SMPS Flyback Transformer With 6 Identical Windings 749196527
Usage:
For Push-pull Converters
Mount:
Surface Mount
Product Type::
Flyback Transformer
Operating Temperature Range:
-40 °C Up To +125 °C
Inductance:
5.3 µH
Package:
Tape / Reel
SMPS Flyback Transformer with 6 identical windings 749196527

SMPS Flyback Transformer with 6 identical windings 749196527


Characteristics

  1. Transformer with 6 identical windings
  2. 4 sizes with 5 different lengths of air gap each
  3. Isolation voltage up to 1.5 kVAC
  4. Low leakage inductance
  5. Operating temperature: –40 ºC to +125 ºC
  6. By using different circuits more than 375 transformer solutions and about 125 choke solutions possible. Consequently, quick
  7. prototyping possibilities



Applications

  1. Flyback converters
  2. Forward converters
  3. Push-pull converters
  4. Step-up/step-down converters
  5. SEPIC



Electrical Properties:

Properties   Test conditions Value Unit Tol.
Inductance L BASE 100 kHz/ 0.1 V 5.3 µH ±20%
Turns Ratio n   1:1:1:1:1:1
Voltage-µSecond Base ∫Udt Base   83.6 Vµs max
Rated Current Base I R BASE ΔT = 40 K 2.3 A typ
Saturation Current Base I SAT BASE |ΔL/L| < 10 % 2.81 A typ.
DC Resistance Base RDC BASE @ 20 °C 36 max.
Leakage Inductance Base L S Base 100 kHz/ 0.1 V 0.18 µH typ.
Insulation Test Voltage VT All Windings 1500 V (AC)




Shape and Dimensions:
SMPS Flyback Transformer with 6 identical windings 749196527 0


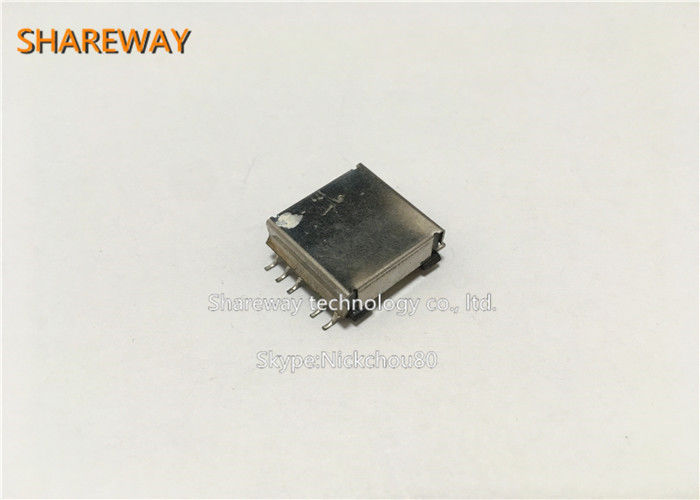

Product picture:

SMPS Flyback Transformer with 6 identical windings 749196527 1



SMPS Flyback Transformer with 6 identical windings 749196527
