High Frequency SMPS Flyback Transformer POE13P-12L For Power Over Ethernet

Name: High Frequency SMPS Flyback Transformer POE13P-12L For Power Over Ethernet
Brand: SHAREWAY TECHNOLOGY CO., LTD.
SKU: POE13P-12L, POE13F-19L
Price: 1.50 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: Shareway

Certification: RoHs, Reach, UL

Model Number: POE13P-12L, POE13F-19L

Payment & Shipping Terms

Minimum Order Quantity: 100

Price: USD$0.5 to USD$2.50

Packaging Details: Tray, Tape & Reel

Delivery Time: onw week for sample, 4 weeks for mass order

Payment Terms: T/T

Supply Ability: 1000,000 piece per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                Power Over Ethernet SMPS Flyback Transformer, High Frequency SMPS Flyback Transformer, POE13P-12L SMPS Flyback Transformer


Power:	13W	Output:	12 V, 1.08 A
Norminal Freq:	250kHz	Pri : Sec:	1:0.5
Designed For:	PoE	Sample:	Supported For Testing
Certificate:	UL, Reach, RoHs	Shipping:	DHL, UPS, Fedex, TNT

Power:	13W
Output:	12 V, 1.08 A
Norminal Freq:	250kHz
Pri : Sec:	1:0.5
Designed For:	PoE
Sample:	Supported For Testing
Certificate:	UL, Reach, RoHs
Shipping:	DHL, UPS, Fedex, TNT

High Frequency SMPS Flyback Transformer POE13P-12L For Power Over Ethernet

Shareway wholesale Switching converter transformers flyback transfomers POE13P-12L

Features:

1. Inductance: 100kHz/ 100mA @ 8mA DC Bias

2. OCL: 350 uH Min

3. Turns ratio:100kHz/ 100mA 1TX : 1RX

4. Insertion Loss: 1-100MHz

5. Return Loss:

1-30MHz: -10dB min

30-60MHz: -7dB min

60-80MHz: -5dB min

80-100MHz: -4dB min

6. Common mode rejection ratio:

1-30MHz: -35dB min

30-60MHz: -30dB min

60-100MHz: -28dB min

7. Crosstalk:

1-60MHz: -42dB min

60-100MHz: -40dB min

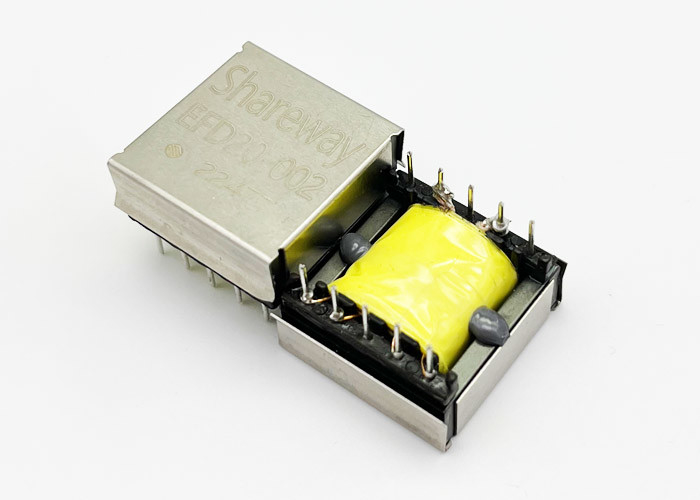

Flyback transformer photo:

High Frequency SMPS Flyback Transformer POE13P-12L For Power Over Ethernet 0

How to place the order to us:

1. Please send your demand datasheet to us.

2. We will provide drop in alternative and price for refer.

3. If price ok, then we will send you some free sample for testing.

4. After testing, you can place the mass order and process the payment.

5. The lead time for mass order usually is about 4 weeks.

6. When the order is ready, we will ship out and send you the shipping details for tracking.

Please contact sales04@shareway-tech.com freely for any further information.
