Through-hole SMPS Flyback Transformer
, Home Appliances SMPS Flyback Transformer
, 7508110341 SMPS Flyback Transformer
Through-hole SMPS Flyback Transformer For Home Appliances 7508110341
Through-hole SMPS Flyback Transformer for Home appliances 7508110341
Characteristics
- Nominal input voltage: 85–265 VAC (120–375 VDC)
- Operating temperature: –40 °C to +125 °C
- Isolation voltage: 2 kVAC up to 5 kVAC
- Multiple output options
- Options for fixed frequency or quasi-resonant mode operation
- Most products meet reinforced insulation
Applications
- Offline-switch mode power supplies
- Especially designed for several ICs from STMicroelectronics
- Auxiliary power supply
- Home appliances
- Consumer electronics
Electrical Properties:
|
PARAMETER
|
TEST CONDITIONS
|
VALUE
|
|
D.C.RESISTANCE 3-4
|
@20℃
|
3.000 ohms ±10%
|
|
D.C.RESISTANCE 5-7
|
tie(5+6,7+8),@20℃
|
0.118 ohms ±10%
|
|
D.C.RESISTANCE 2-1
|
@20℃
|
1.280 ohms ±10%
|
|
INDUCTANCE 3-4
|
10kHz,100mVAC,Ls
|
1.5mH ±10%
|
|
SATURATION CURRENT 3-4
|
20%rolloff from initial
|
520mA
|
|
LEAKAGE INDUCTANCE 3-4
|
tie(1+2,5+6+7+8), 100kHz,100mVAC,Ls
|
37uH typ.,56uH max.
|
|
DIELECTRIC 4-5
|
Tie(2+3,7+8), 4000VAC,1 second
|
4000VAC,1 minute
|
|
TURNS RATIO
|
(3-4):(5-7)
|
6.87:1,±1%
|
|
TURNS RATIO
|
(3-4):(2-1)
|
5.42:1,±1%
|
Shape and Dimensions:

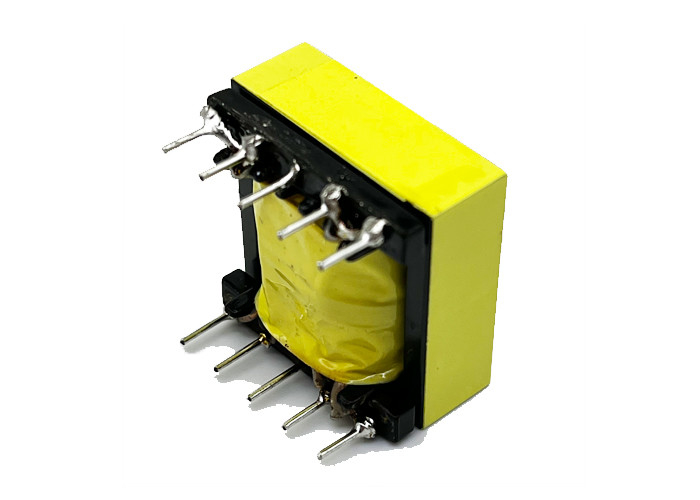

Product picture:
Through-hole SMPS Flyback Transformer for Home appliances 7508110341
